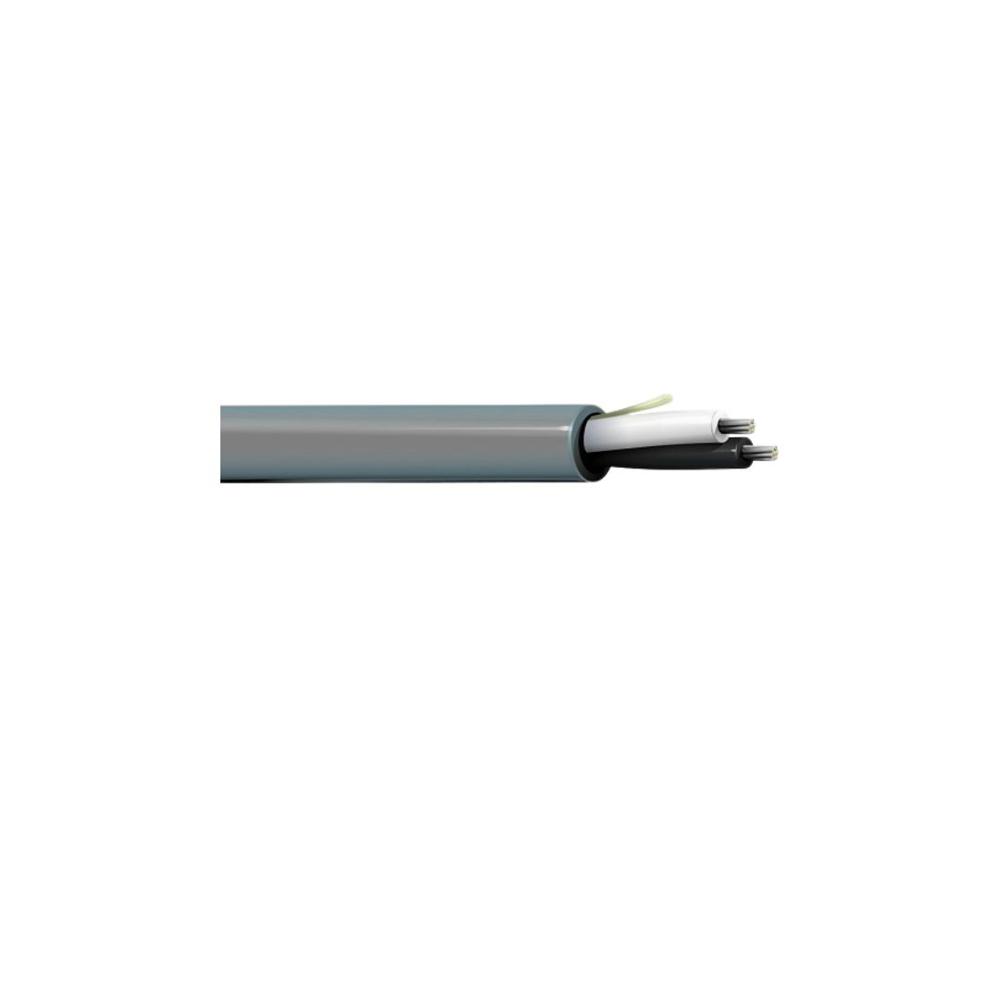

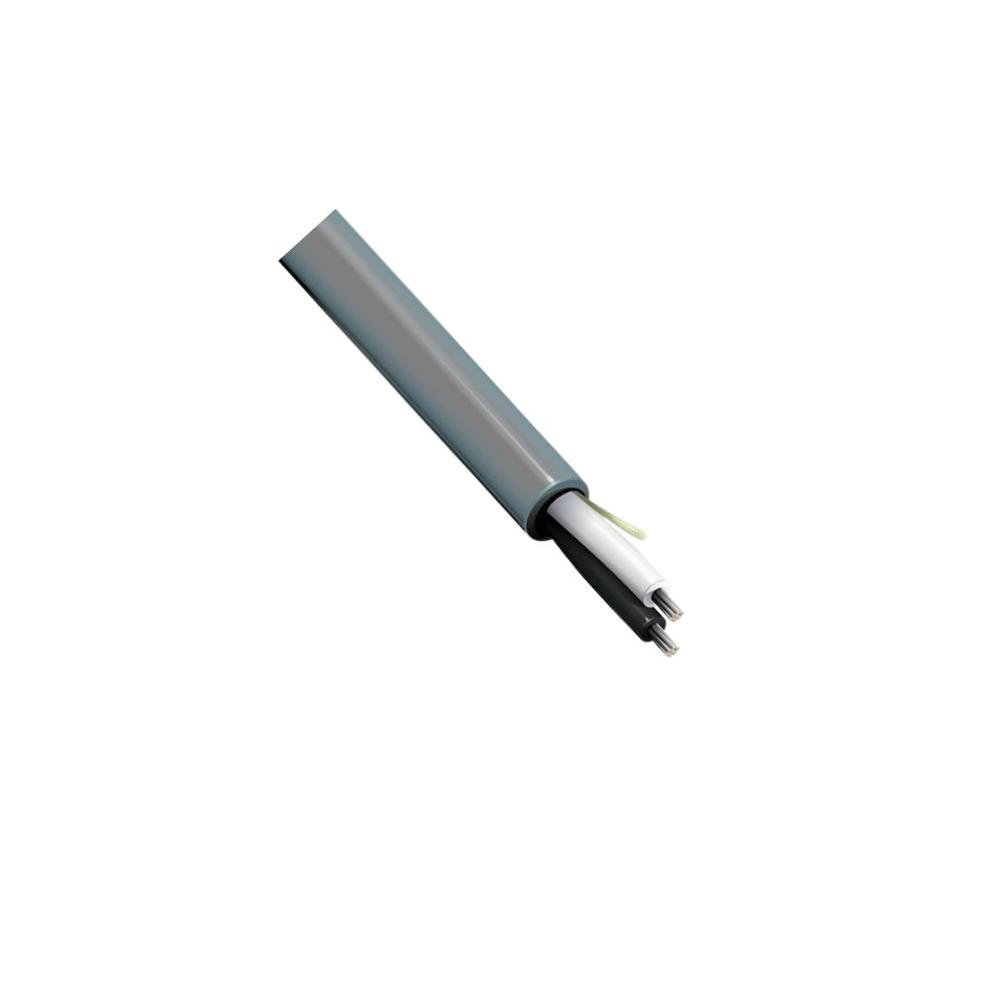

BELDEN 6100UE Cable

Name: BELDEN 6100UE Cable
Brand: P&S INNOVATION
Price: 170.0 INR
Availability: InStock

Price 170.0 INR/ Meter

Get a Price/Quote

BELDEN 6100UE Cable Specification

Install Type
Indoor Horizontal Cabling

Weight
Approx. 13.6 kg/reel

Core Number
4 pairs (8 cores)

Diameter
Approx. 6.2 mm

Number of Conductor
8 (4 pairs)

Armored Material
None (Non-armored)

Impedance
100 Ohms 15%

Conductor Type
Solid

Tensile Strength
Minimum 100N (installation)

Operating Temperature
-20C to 60C

Core Material
Copper

Rated Temperature
-20C to 60C

Cable Type
Category 6 U/UTP Ethernet Cable

Insulation
Polyethylene (PE)

Features
Category 6 U/UTP Cable, 23 AWG, Solid Bare Copper Conductors, Polyethylene Insulation, PVC Jacket, 4 Unshielded Twisted Pairs, High Performance Data Transmission, RoHS Compliant, Flame Retardant

Dielectiric Strength
1000V (AC, 1 min)

Conductor Shape
Round

Usage & Applications
Commercial Networks, Data Centers, Office Cabling, Home Networking

Product Type
Cat 6 UTP LAN Cable

Length
305 meters (1000 ft) per reel

Voltage
300V

Insulation Material
Other

Application
Other

Conductor Material
Bare Copper

Jacket Material
Polyvinyl Chloride (PVC)

Storage Temperature
-30C to 75C

Connector Color
N/A (Supplied without connectors)

Shield Material
Unshielded (U/UTP)

Jacket Color
Blue

Dimension (L*W*H)
N/A (Supplied in reel form)

Material
Copper, Polyethylene, PVC

Color
Blue

Size
23 AWG

Attenuation (100 MHz)
20.6 dB/100 m max

NEXT (100 MHz)
44 dB min

Propagation Delay
< 45 ns/100m @ 100 MHz

Twist Lay Length
Varies per pair for performance optimization

Package Type
Pull Box or Reel

Maximum Conductor Resistance
9.38 Ohm/100m at 20C

Return Loss (100 MHz)
20.1 dB min

Mutual Capacitance
5.6 nF/100m nominal

Flame Test
CM rated (UL 1685, IEC 60332-1)

BELDEN 6100UE Cable Trade Information

Minimum Order Quantity
305 Meter

Main Domestic Market
All India

About BELDEN 6100UE Cable

Security & Sound, 2 Conductor 14 AWG BC, CL2P6100UESecurity & Commercial Audio Cable, Plenum-CL2P, 2 Conductor 14 AWG stranded (19x27) bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord

High-Quality Cabling for Demanding Environments

The BELDEN 6100UE Category 6 cable delivers consistent data performance, making it suitable for commercial networks, data centers, and home setups. Its solid bare copper conductors and optimized twist design ensure efficient signal transmission with minimal interference, while its flame-retardant PVC jacket enhances safety during installation and operation.

Versatile Applications & Robust Construction

Designed for use in LAN cabling, voice, video, and industrial networking, the 6100UE cable thrives in various settings. It operates effectively in temperature ranges from -20C to 60C, with a minimum installation tensile strength of 100N. Its blue, pull box or reel packaging streamlines large-scale deployments.

FAQ's of BELDEN 6100UE:

Q: How is the BELDEN 6100UE cable used in networking applications?

A: The BELDEN 6100UE is typically used for local area networking (LAN), data communication, and voice and video transmission within commercial, office, and industrial environments. Its high-performance capabilities make it ideal for horizontal cabling installations across both data centers and home networks.

Q: What makes the BELDEN 6100UE suitable for high-speed data transmission?

A: This cable features 23 AWG solid bare copper conductors, optimized twist lay lengths, and strict electrical performance characteristics such as low attenuation (20.6 dB/100m @ 100 MHz) and high NEXT (44 dB min at 100 MHz). These factors ensure stable, high-speed signal transmission and minimal cross-talk.

Q: When should I install BELDEN 6100UE cable instead of lower category cables?

A: Choose BELDEN 6100UE when your installation demands higher bandwidth, reduced interference, and future-proofing for evolving data network needs, including applications like Gigabit Ethernet, video streaming, and VoIP. It is especially recommended for new installations in commercial or industrial settings.

Q: Where can I purchase the BELDEN 6100UE cable in India?

A: The BELDEN 6100UE can be sourced through authorized Belden exporters, importers, manufacturers, and suppliers throughout India. It is available in both pull box and reel configurations to suit different installation requirements.

Q: What is the installation process for BELDEN 6100UE cable?

A: Installation involves running the cable indoors along horizontal trays or conduits, taking care to avoid sharp bends and excessive force, as the cable supports a minimum tensile strength of 100N. Strip the PVC jacket to connect the eight conductors (four pairs) to compatible jacks or patch panels as needed.

Q: What benefits does the BELDEN 6100UE provide over unshielded or lower-rated cables?

A: The BELDEN 6100UE offers enhanced data integrity due to its Category 6 rating, optimized design for lower cross-talk, better stability over distances, flame retardancy, RoHS compliance, and durable construction for consistent performance in demanding environments.

Q: How is the BELDEN 6100UE cable stored and maintained for longevity?

A: Store the cable in environments between -30C and 75C, ensuring it is kept dry and protected from physical damage. Proper handling during installation and avoiding over-bending will help maintain its performance and extend its service life.
