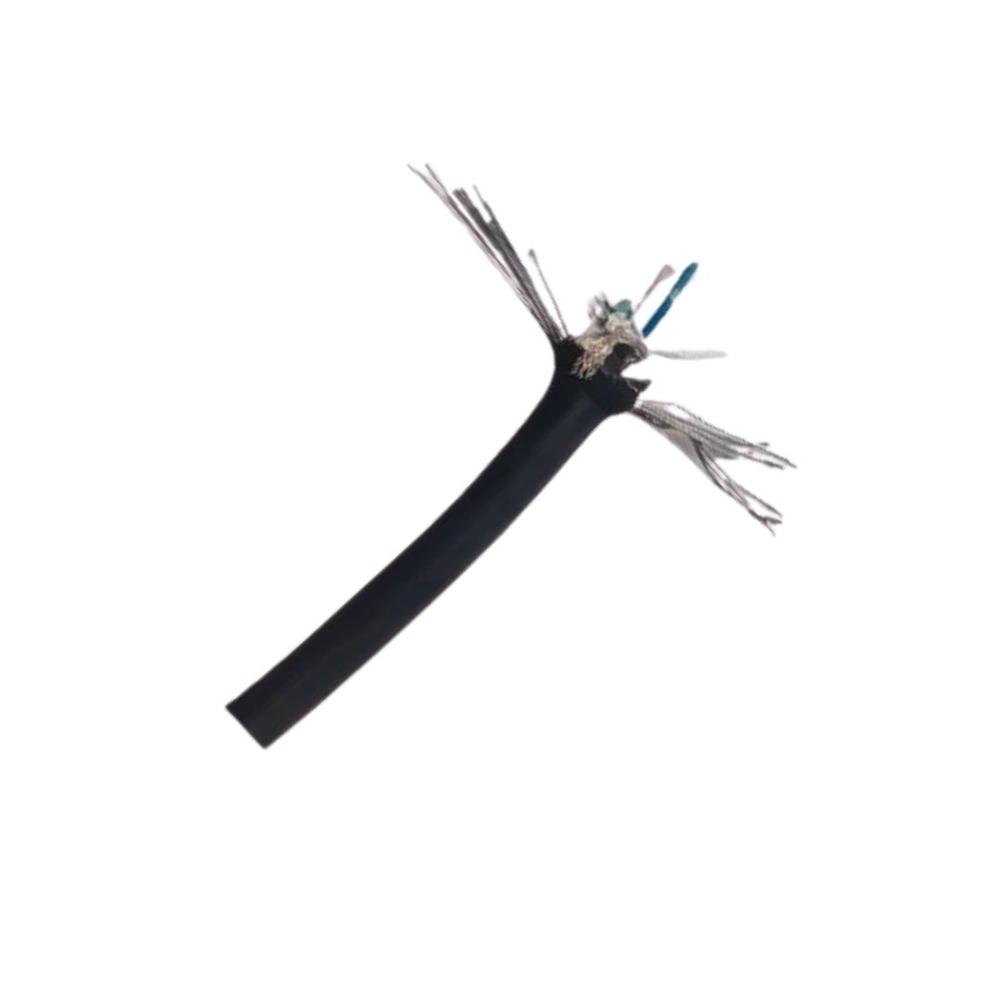

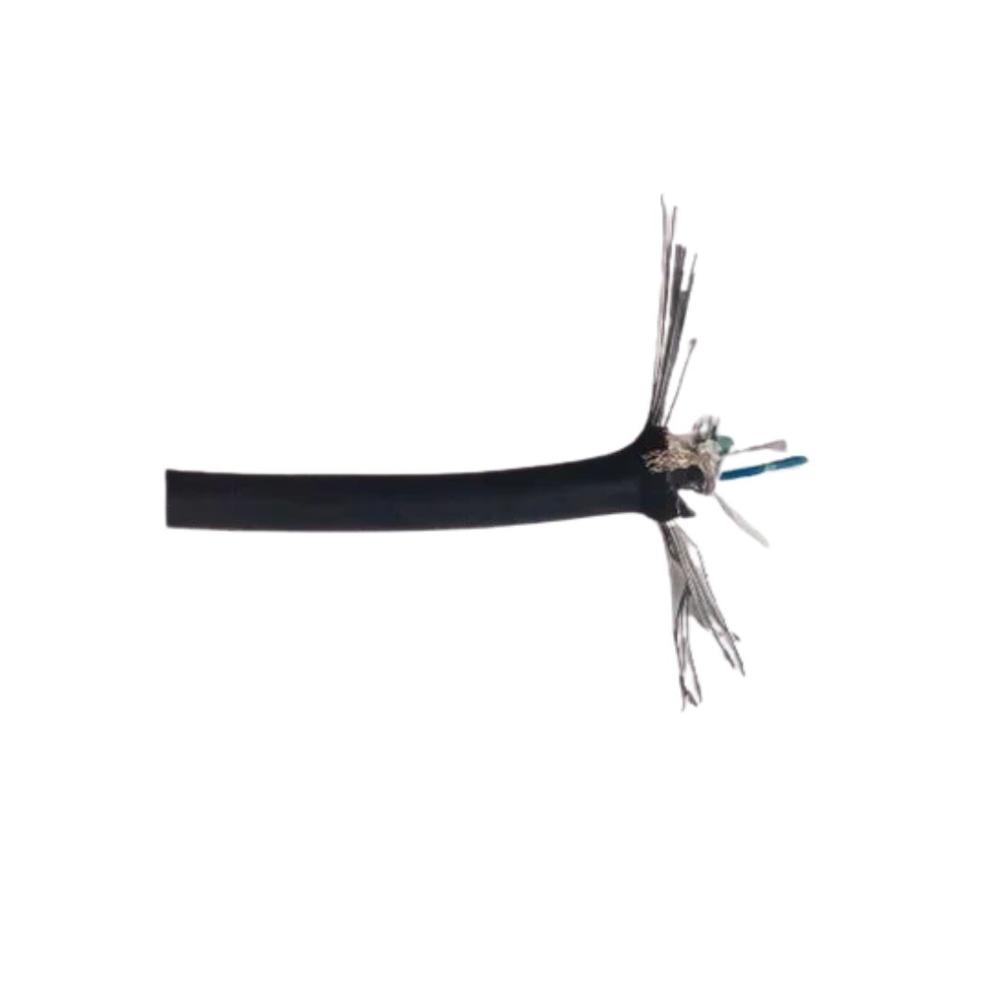

BELDEN YZ65746

Name: BELDEN YZ65746
Brand: P&S INNOVATION
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Meter

Get a Price/Quote

BELDEN YZ65746 Specification

Conductor Type
Stranded

Cable Type
Flexible Multi-Conductor Cable

Core Material
Tinned Copper

Number of Conductor
4

Armored Material
Not Armored

Diameter
6.2 mm (approx for 16 AWG 4-core)

Features
Flexible, durable, abrasion-resistant, industrial grade cable

Weight
Depends on length and configuration

Insulation
PVC

Operating Temperature
-30°C to +90°C

Conductor Shape
Round

Rated Temperature
-30°C to +90°C

Core Number
4

Dielectiric Strength
2kV for 1 minute

Tensile Strength
High tensile strength for industrial use

Install Type
Fixed and flexible installation

Usage & Applications
Factory automation, Machinery, Control cabinets

Product Type
Multi-Conductor Industrial Cable

Length
Standard and custom lengths available

Voltage
600V

Insulation Material
PVC

Application
Industrial automation, control panels, machinery wiring

Conductor Material
Tinned Copper

Jacket Material
PVC

Storage Temperature
-40°C to +90°C

Shield Material
Tinned Copper

Jacket Color
Gray

Dimension (L*W*H)
Per cable size and length

Material
PVC, Tinned Copper

Color
Gray

Size
16 AWG

Minimum Bend Radius
8 x cable diameter

Flame Retardant
Yes

Nominal Capacitance
50 pF/m (approx)

Voltage Test
2000V AC 1min

UV Resistance
Yes

Oil Resistance
Yes, resistant to industrial oils and chemicals

RoHS Compliance
Compliant

Pack Type
Roll / Drum

Surface Marking
Meter marked for length control

Sheath Type
Non-armored

BELDEN YZ65746 Trade Information

Minimum Order Quantity
100 Meter

Main Domestic Market
All India

BELDEN YZ65746 About

1Pair 24AWG PO/OBS/PVC/SWA/PVC Armored RS-485 Cable.

Conductor Material-Stranded Tinned CopperConductor Size-24AWGConductor Stranding(No. of strands/diameter or AWG)-7/32No. of Pairs-1Insulation Material-PO - PolyolefinInsulation Color - Black

Overall Shield Type-1st: Beldfoil Overall Shield Material-AL/PET Tape-Tinned CopperOverall Shield Coverage-100%Drain Wire-24 AWG Stranded Tinned Copper

Built for Harsh Industrial Environments

BELDEN YZ65746 stands up to the rigorous demands of automation and machinery thanks to its flexible, abrasion-resistant build and excellent resistance to industrial oils, chemicals, and UV exposure. The non-armored PVC sheath resists flame and harsh elements, ensuring reliability across a wide temperature spectrum, from -30C to +90C.

Flexible Design, Precise Installation

This cable offers excellent flexibility and a minimum bend radius of 8 times the cable diameter, making it easier to install in control cabinets and tight spaces. Its stranded, round tinned copper conductors further enhance bendability, and the meter-marked sheath streamlines length measurements for accurate cuts and installation.

Reliable Performance for Automation Applications

With a voltage rating up to 600V and tested dielectric strength of 2kV for 1 minute, BELDEN YZ65746 efficiently powers and controls machinery. Its high tensile strength, secure oil and chemical resistance, and RoHS compliance make it a go-to solution for demanding industrial automation and control panel wiring.

FAQ's of BELDEN YZ65746:

Q: How can BELDEN YZ65746 be used in industrial automation?

A: BELDEN YZ65746 is ideal for wiring control panels, factory automation systems, and machinery. Its flexible and durable construction makes it suitable for both fixed and flexible installations where reliability and resistance to oils, chemicals, and abrasion are essential.

Q: What are the main benefits of using this cable in harsh environments?

A: This cable excels in challenging conditions due to its oil, chemical, and UV resistance, flame-retardant PVC sheath, high tensile strength, and wide operating temperature range. These features ensure long-term performance and safety in industrial settings.

Q: When should I choose a non-armored cable like the BELDEN YZ65746?

A: Choose BELDEN YZ65746 when your application requires flexibility and ease of installation without the extra weight and rigidity of armored cables. It's well-suited for protected indoor environments within machinery or control cabinets where high physical protection is not necessary.

Q: Where can this cable be installed?

A: This cable can be used in various settings, including inside factory automation equipment, machinery, control cabinets, and anywhere industrial-grade flexible multi-conductor cables are required. It is suitable for both indoor and outdoor use due to its UV-resistant jacket.

Q: What is the process for ordering BELDEN YZ65746 in custom lengths?

A: BELDEN YZ65746 is available in standard and custom lengths. To order custom lengths, contact the manufacturer, supplier, or authorized distributor, specifying your required cable size and length. The product is typically delivered in rolls or drums according to your needs.

Q: How does the meter marking on the cable benefit installation?

A: The surface meter marking allows installers to easily measure and control cable length during installation. This feature ensures accurate cuts, minimizes waste, and streamlines project workflows.

Q: What makes the BELDEN YZ65746 compliant with modern industrial standards?

A: This cable is RoHS compliant, tested up to 2000V AC for one minute, and built from lead-free materials with tinned copper conductors. These attributes ensure it meets international safety, environmental, and performance standards.
