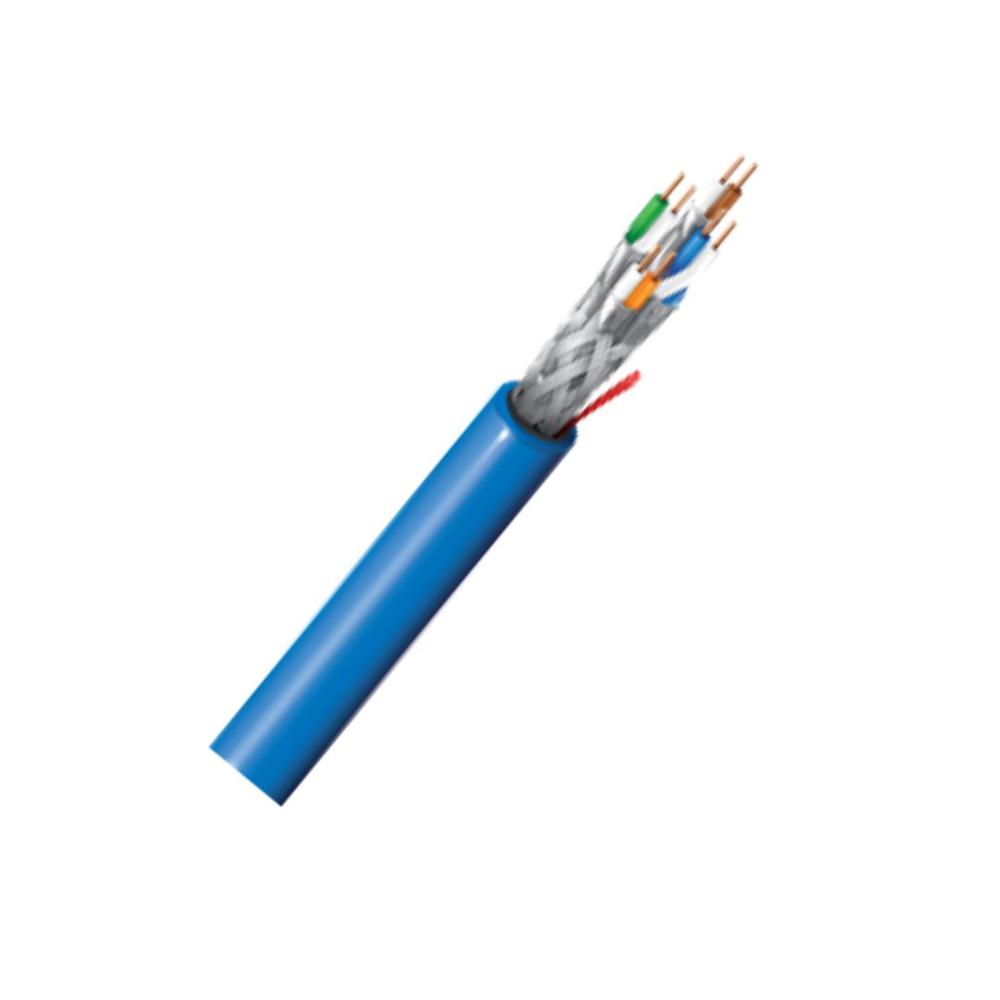

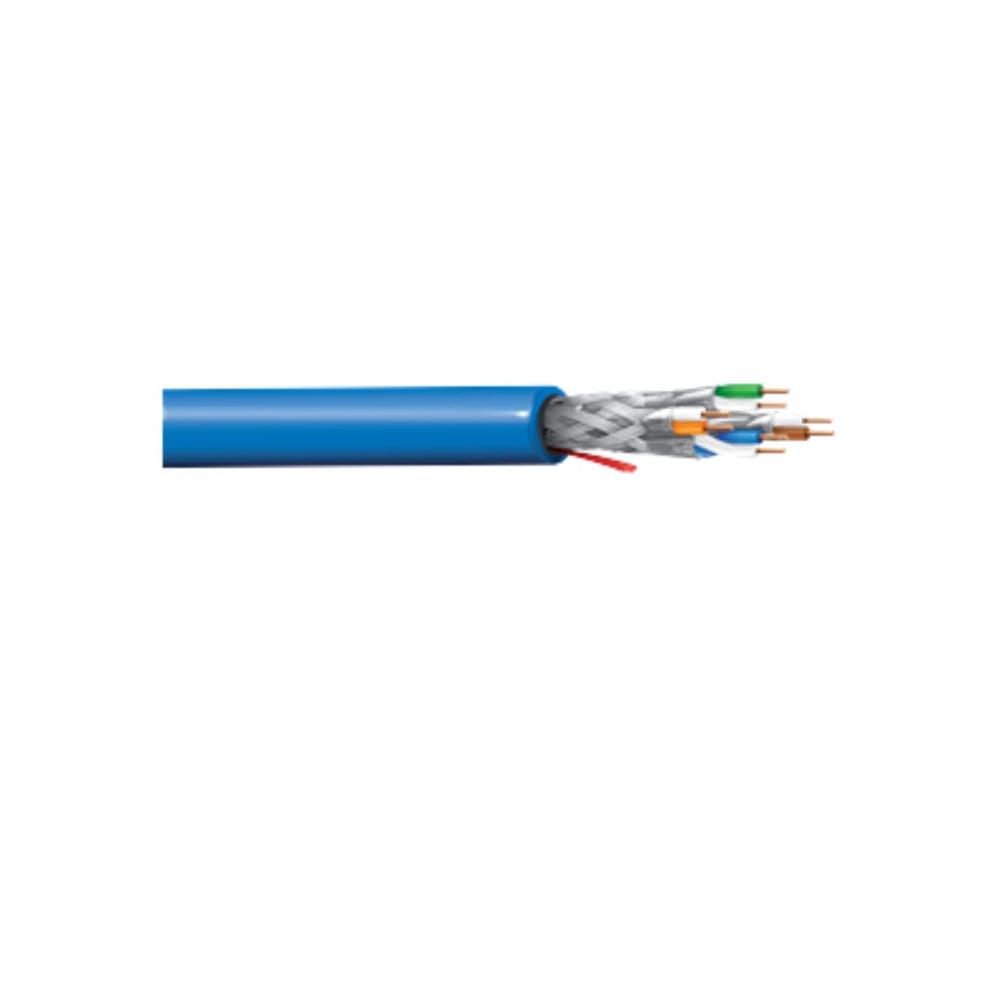

Belden 10GXE02 Cat 6 Cable

Name: Belden 10GXE02 Cat 6 Cable
Brand: P&S INNOVATION
Price: 60.0 INR
Availability: InStock

Price 60.0 INR/ Meter

Get a Price/Quote

Belden 10GXE02 Cat 6 Cable Specification

Number of Conductor
8 (4 twisted pairs)

Diameter
6.2 mm (typical)

Core Number
8

Conductor Type
Single Core

Locking Type
N/A (bulk cable, no locking mechanism)

Armored Material
Not Armored

Usage & Applications
10G Ethernet, Network Backbone, Patch Cords

Conductor Shape
Solid

Dielectiric Strength
1000V AC for 1 min

Operating Temperature
-20°C to +60°C

Cable Type
Cat 6 UTP

Impedance
100 Ohms

Install Type
Indoor horizontal cabling

Weight
0.038 kg/m

Tensile Strength
Minimum 110 N

Rated Temperature
-20°C to +60°C

Core Material
Copper

Insulation
Polyolefin

Features
High performance, supports 10G Ethernet, enhanced EMI protection, low signal loss, suitable for high-speed networking.

Product Type
Cat 6 Networking Cable

Length
Available in custom lengths (standard rolls 305 meters / 1000 feet).

Voltage
300V

Insulation Material
Other

Application
Other

Conductor Material
Bare Copper

Jacket Material
LSZH (Low Smoke Zero Halogen)

Storage Temperature
-40°C to +70°C

Connector Color
N/A (bulk cable; connectors supplied separately)

Shield Material
Unshielded (UTP)

Jacket Color
Blue

Dimension (L*W*H)
Standard reel packaging, varies with length

Color
Blue

Material
Copper, Polyolefin, LSZH Jacket

Size
23 AWG

Compatible Connectors
RJ-45 for Cat 6

Rip Cord
Integrated for easy jacket removal

Maximum Pulling Force
110 N

Packaging Type
Reel or Box

Capacitance
5.6 nF/100m

Cable Structure
UTP, 4 Pairs, Filler for performance stability

Maximum Frequency
500 MHz

Flame Rating
IEC 60332-1, RoHS compliant

Reference Standard
ANSI/TIA-568-C.2, ISO/IEC 11801 Class E

Belden 10GXE02 Cat 6 Cable Trade Information

Minimum Order Quantity
100 Meter

Main Domestic Market
All India

About Belden 10GXE02 Cat 6 Cable

Category 6A (625MHz) 4-Pair, S/FTP shielded, Premise Horizontal Cable, 23 AWG Solid Bare Copper conductors Foam Polyolefin insulation each pair with Beldfoil shield tinned copper braid shield (30%) LSZH jacket CPR Euroclass Eca.

High-Speed Performance for Modern Networks

Engineered for maximum speeds, the Belden 10GXE02 Cat 6 Cable supports 10 Gigabit Ethernet and ensures reliable data transmission up to 500 MHz. Its design minimizes signal loss and interference, making it a top choice for enterprise networks, data centers, and commercial applications requiring fast and stable connectivity.

Compliant and Safe Cabling Solution

This cable meets strict global standards including ANSI/TIA-568-C.2, ISO/IEC 11801 Class E, and IEC 60332-1 flame rating. With LSZH jacketing, it provides superior protection in indoor environments, reducing hazardous smoke in the event of fire. RoHS compliance ensures environmentally responsible installation.

Ease of Installation and Maintenance

The integrated rip cord enables swift and easy removal of the jacket during installation, while the UTP structure with filler enhances pair stability for consistent performance. Available in convenient reel or box packaging, it accommodates custom lengths, fitting diverse installation needs with minimal effort.

FAQ's of Belden 10GXE02 Cat 6 Cable:

Q: How is the Belden 10GXE02 Cat 6 Cable installed for optimal performance?

A: For best results, install the cable indoors as horizontal cabling, taking advantage of its integrated rip cord for quick jacket removal. Ensure correct cable routing and avoid sharp bends to maintain the cable's electrical performance. Terminate with RJ-45 connectors (Cat 6 rated) as specified.

Q: What standards and certifications does this cable comply with?

A: The cable meets ANSI/TIA-568-C.2 and ISO/IEC 11801 Class E performance standards, is RoHS compliant, and carries an IEC 60332-1 flame rating for safety in indoor environments. These certifications guarantee high-quality and reliable operation.

Q: When should I use the 10GXE02 Cat 6 Cable in network infrastructure?

A: This cable is ideal for high-speed LANs, backbone installations, and data center wiring where 10G Ethernet support and minimal signal loss are critical. It should be used in projects that require robust EMI protection and future-ready performance.

Q: Where can the Belden 10GXE02 cable be installed, and what environments is it suitable for?

A: Designed for indoor use, this cable is perfect for commercial buildings, data centers, and backbone cabling in network infrastructures requiring high-capacity connections. The LSZH jacket makes it suitable for environments that prioritize fire safety and low smoke emission.

Q: What process should be followed for terminating the cable?

A: Terminate the cable by stripping the LSZH jacket using the rip cord, separating the untwisted pairs with minimal disturbance, and attaching RJ-45 connectors (Cat 6 rated). Always adhere to recognized wiring schemes and standards for consistent performance.

Q: What are the benefits of using this cable for high-speed data networks?

A: Benefits include high-frequency operation up to 500 MHz, enhanced EMI protection, low signal loss, and robust construction with a solid bare copper core. Its LSZH jacket enhances safety, and the cable's design supports reliable 10G Ethernet for demanding networking environments.

Q: How can the cable be ordered and what packaging options are available?

A: The 10GXE02 Cat 6 Cable is available through exporters, importers, manufacturers, and suppliers across India. Orders can be placed for standard lengths (305 meters / 1000 feet) on reels or boxes, as well as custom lengths to suit project needs.
