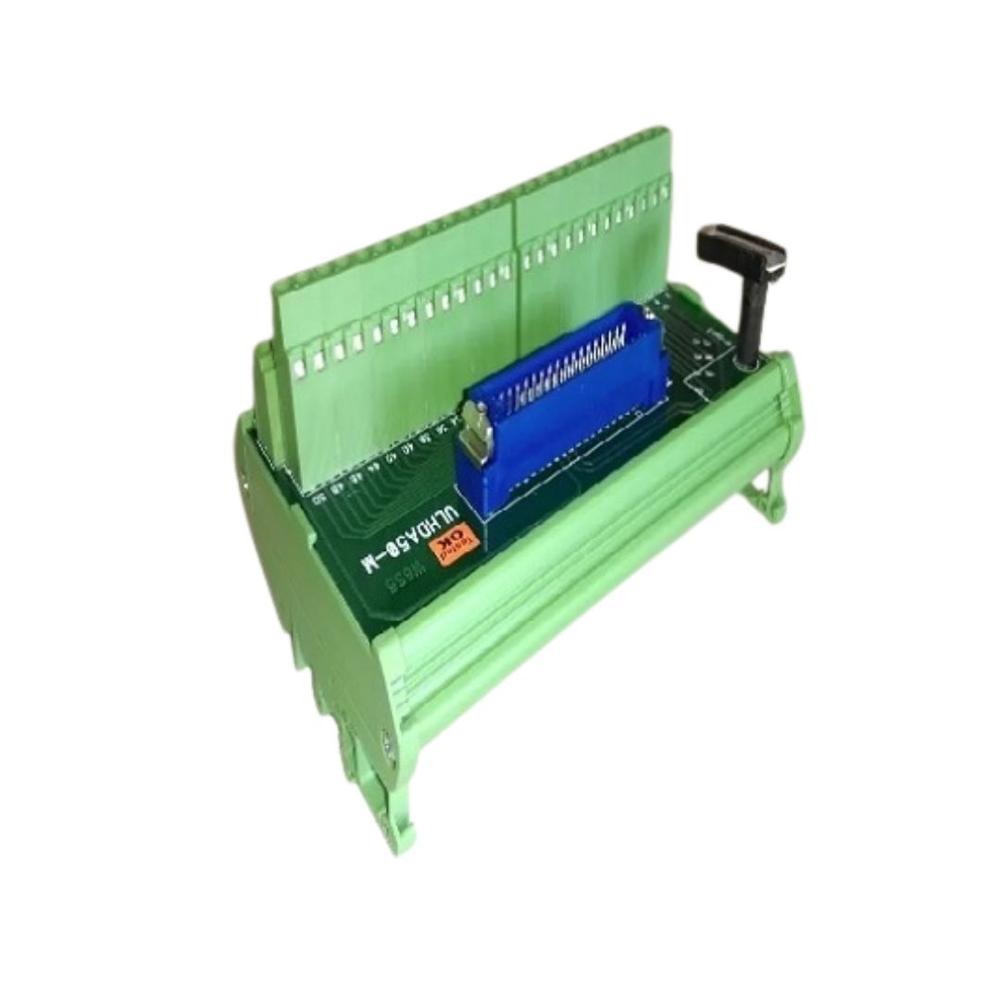

Passive Interface Modules

Price 980 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Passive Interface Modules Specification

Control Type
Passive (Non-controlled)

Application
PLC interfacing, Signal distribution, Industrial automation, Field connections

Connectivity Type
Screw terminals, Plug-in connectors

Weight
Approx. 100-300 grams (model dependent)

Frequency
50/60 Hz

Features
LED status indication (optional), Compact design, Multiple channel support

IP Rating
IP20 to IP40

Phase
Single and Three phase compatibility

Load Capacity
Dependent on terminal rating (typically up to 6A/terminal)

Mounting Type
DIN Rail Mount, Panel Mount

Cable Length
Customizable (depends on installation)

Processor Type
Not applicable (Passive device)

Automation Grade
Automatic or Manual (Depending on application)

Material
Polycarbonate, ABS or FR4 (PCB base), Flame Retardant

Power
Passive (No internal power consumption, only signal transmission)

Temperature
-20C to +60C

Voltage
up to 250V AC/DC

Wire Size Supported
0.2 2.5 sq.mm

Typical Accessories
Marker strips, End plates, Partition plates

Isolation Type
Optional optical/electrical isolation (in some variants)

Standards
As per IEC/EN 60947-7-1

Number of Channels
2, 4, 8, 16, or 24 (as per model selection)

Housing Color
Standard Grey/Black

Compliance
CE, RoHS Certified

Terminal Pitch
5.08 mm (commonly used)

Custom Engineering
Available on request

Passive Interface Modules Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Passive Interface Modules

Discover rare Passive Interface Modules acclaimed for reliability and performance-crafted as a remarkable solution for industrial interfacing needs. With flawless options ranging from 2 to 24 channels and a terminal pitch of 5.08mm, these limited-stock modules deliver seamless PLC interfacing, signal distribution, and automation control. CE and RoHS certified, supporting wire sizes from 0.2 - 2.5 sq.mm, and customizable for your project, each masterpiece is engineered with robust polycarbonate, ABS, or FR4 bases. Optional optical/electrical isolation ensures remarkable safety, while their compact, flame-retardant design suits dynamic environments. Secure yours now!

Primary Competitive Advantages & Commercial Applications

Passive Interface Modules provide flawless, dependable signal transmission for PLC interfacing, industrial automation, and field connections. Their rare flexibility across 2 to 24 channels, compact DIN/panel mounting, and optional LED status indicators make them an acclaimed choice for applications requiring reliable passive connectivity. Custom-engineered solutions meet project-specific needs, supporting multiple wire types and terminal ratings. These modules stand out for their remarkable build quality, CE/RoHS compliance, and adaptability to both automatic and manual control environments, making them invaluable for exporters, manufacturers, and suppliers.

Export Markets & Efficient Delivery Services

Our Passive Interface Modules are acclaimed in main export markets, including Europe, Asia, Middle East, and the US. Shipped goods are safely packed and arrive promptly via trusted transport services. Delivery time typically ranges from 3 to 5 weeks, depending on destination and stock availability. We offer flexible payment terms designed to accommodate various customer requirements. Rely on our committed logistics for rapid, secure arrival of your orders, ensuring seamless integration into your industrial processes worldwide.

FAQ's of Passive Interface Modules:

Q: How do I determine the correct Passive Interface Module channel count for my application?

A: Select the number of channels-2, 4, 8, 16, or 24-based on the quantity of signal lines your PLC or automation system requires. Assess your installation size and signal distribution needs for optimal choice.

Q: What benefits do optional optical or electrical isolation provide?

A: Optional insulation types help prevent electrical interference, protecting sensitive equipment and maintaining signal integrity. Optical isolation ensures additional safety by separating control and power circuits.

Q: When should I consider custom engineering for a Passive Interface Module?

A: If your application requires unique wire sizes, special housing colors, additional features, or customized cable lengths, request custom engineering to precisely match your project's demands.

Q: Where can these modules be mounted for best performance?

A: These modules are versatile and can be mounted on DIN rails or panels, making them suitable for diverse environments such as control rooms, field installations, or manufacturing units.

Q: What is the process for ordering and receiving these modules internationally?

A: Once you place an order specifying model and features, we carefully prepare, pack, and ship the goods using reliable transport services. Delivery is arranged promptly, and arrival time depends on your location and chosen logistics plan.

Q: What typical accessories are recommended for installation?

A: Marker strips, end plates, and partition plates are common accessories that help organize wiring, ensure secure mounting, and improve module identification during maintenance or upgrades.
