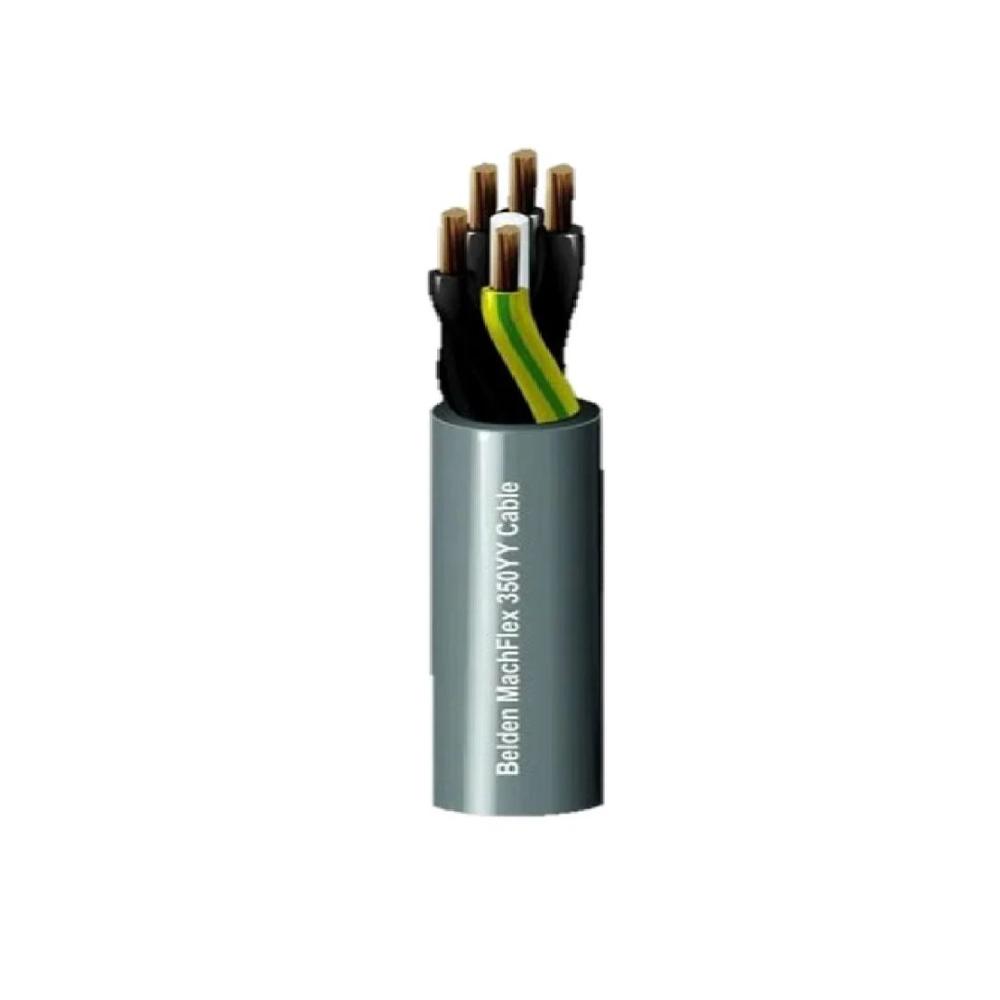

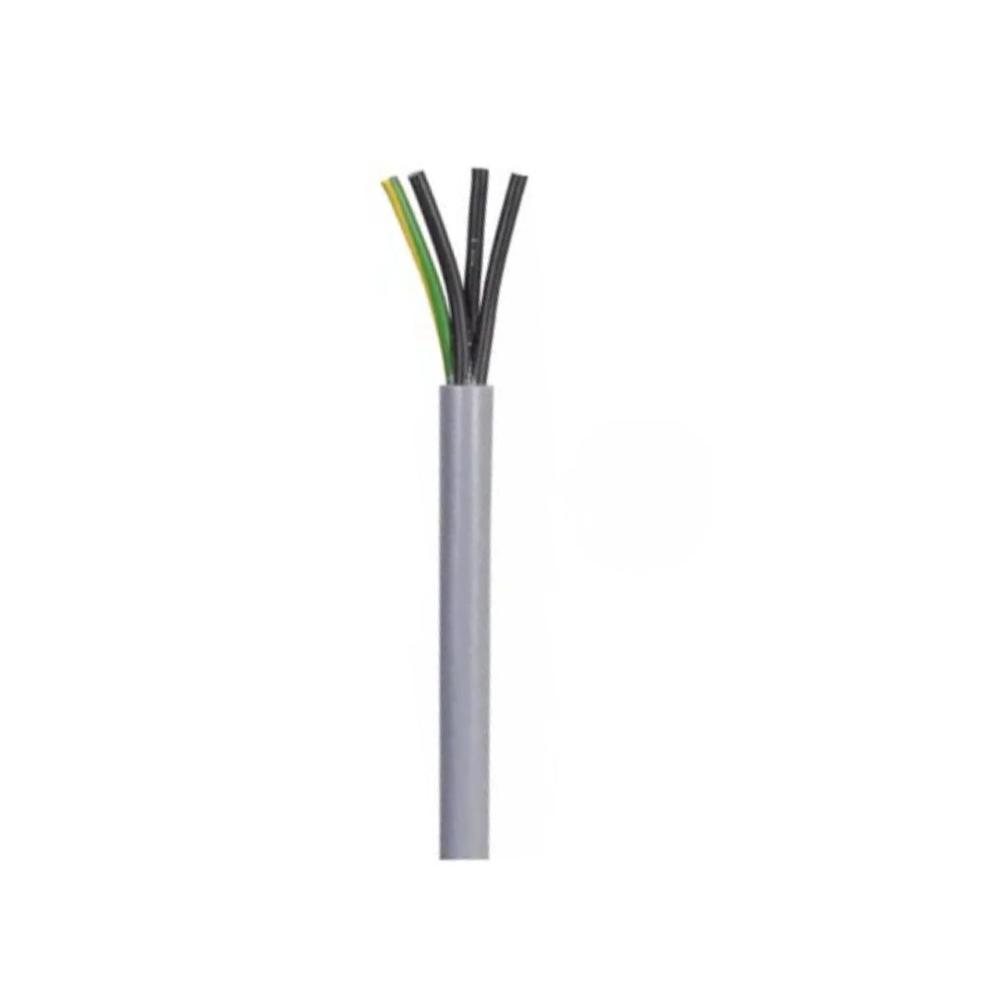

MACHFLEX 350 YY 12G0.5

Price 75 INR/ Meter

Get a Price/Quote

MACHFLEX 350 YY 12G0.5 Specification

Operating Temperature
-5C to +70C (flexible); -30C to +70C (fixed)

Armored Material
Non-armored

Diameter
Approx. 7.6 mm (overall)

Install Type
Fixed and flexible installation

Features
Flexible, oil-resistant, flame-retardant, high mechanical strength, suitable for drag chains and industrial automation

Rated Temperature
+70C

Usage & Applications
Drag chain, control panel, and machinery connection

Conductor Type
Stranded

Weight
Approx. 0.12 kg/m

Number of Conductor
12

Cable Type
Flexible unshielded control cable

Core Material
Copper

Insulation
PVC Type YI2

Conductor Shape
Round

Core Number
12 Core

Product Type
Machflex 350 YY Flexible Control Cable

Length
100 meters (standard roll)

Voltage
300/500 V

Insulation Material
PVC (Polyvinyl Chloride)

Application
Power and control cable for mechanical, plant engineering, and conveyor systems

Conductor Material
Plain Annealed Copper

Jacket Material
PVC

Storage Temperature
-30C to +70C

Shield Material
Unshielded

Jacket Color
Grey (RAL 7001)

Dimension (L*W*H)
100 m x x

Color
Grey

Material
Copper/PVC

Size
0.5 sqmm

MACHFLEX 350 YY 12G0.5 Trade Information

Minimum Order Quantity
100 Meter

Main Domestic Market
All India

About MACHFLEX 350 YY 12G0.5

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more.

Flexible Control Cable for Automation

MACHFLEX 350 YY 12G0.5 is engineered for advanced automation, robotics, and drag chain systems. With a stranded copper core and robust PVC sheath, it ensures high flexibility, making cable management simple even in confined spaces. The PVC insulation safeguards against mechanical wear, supporting prolonged operation in demanding industrial conditions.

Reliable and Safe Operation

Tested to IEC 60332-1 flame retardancy standards, this cable significantly reduces fire risks in industrial settings. Its resistance to oils and moderate UV exposure ensures performance longevity. With a rated voltage of 300/500 V and operational temperature range from -5C to +70C (flexible use), safety and reliability are at the forefront of its design.

FAQs of MACHFLEX 350 YY 12G0.5:

Q: How should the MACHFLEX 350 YY 12G0.5 cable be installed for optimal performance?

A: For best results, the cable should be installed with a minimum bending radius of 7.5 times its outer diameter (approximately 7.6 mm per the specification). It is suitable for both fixed and flexible installations, especially in drag chain and automated machinery applications. Ensure the environment is within the specified operating temperature range.

Q: What are the primary benefits of using this cable in industrial applications?

A: The MACHFLEX 350 YY 12G0.5 offers high flexibility, oil and flame resistance, and robust mechanical strength, making it ideal for power and control in mechanical engineering, conveyor systems, and control panels. Its durable PVC insulation adds reliable electrical and mechanical protection for prolonged service life.

Q: When is it appropriate to select this cable over a halogen-free alternative?

A: Choose this cable when flame retardancy, flexibility, and mechanical strength are priorities and halogen-free requirements are not mandatory. It is not suitable for environments where halogen-free materials are strictly required, as it contains PVC insulation and jacket.

Q: Where can the MACHFLEX 350 YY 12G0.5 be most effectively used?

A: This control cable excels in applications like drag chains, control panels, plant machinery connections, and conveyor systems within industrial and automation sectors. It is particularly suited for installations that demand flexibility and regular movement.

Q: What is the process for storing the cable if it is not immediately installed?

A: Store the cable in a cool, dry area where the ambient temperature is between -30C and +70C. It is supplied in standard coils, making handling and storage convenient until installation.

Q: Is the MACHFLEX 350 YY 12G0.5 compliant with environmental and safety standards?

A: Yes, it is RoHS compliant and lead-free, ensuring minimal environmental impact and adherence to international safety regulations. Please note, while the cable is not halogen-free, it passes IEC 60332-1 for flame retardance.
