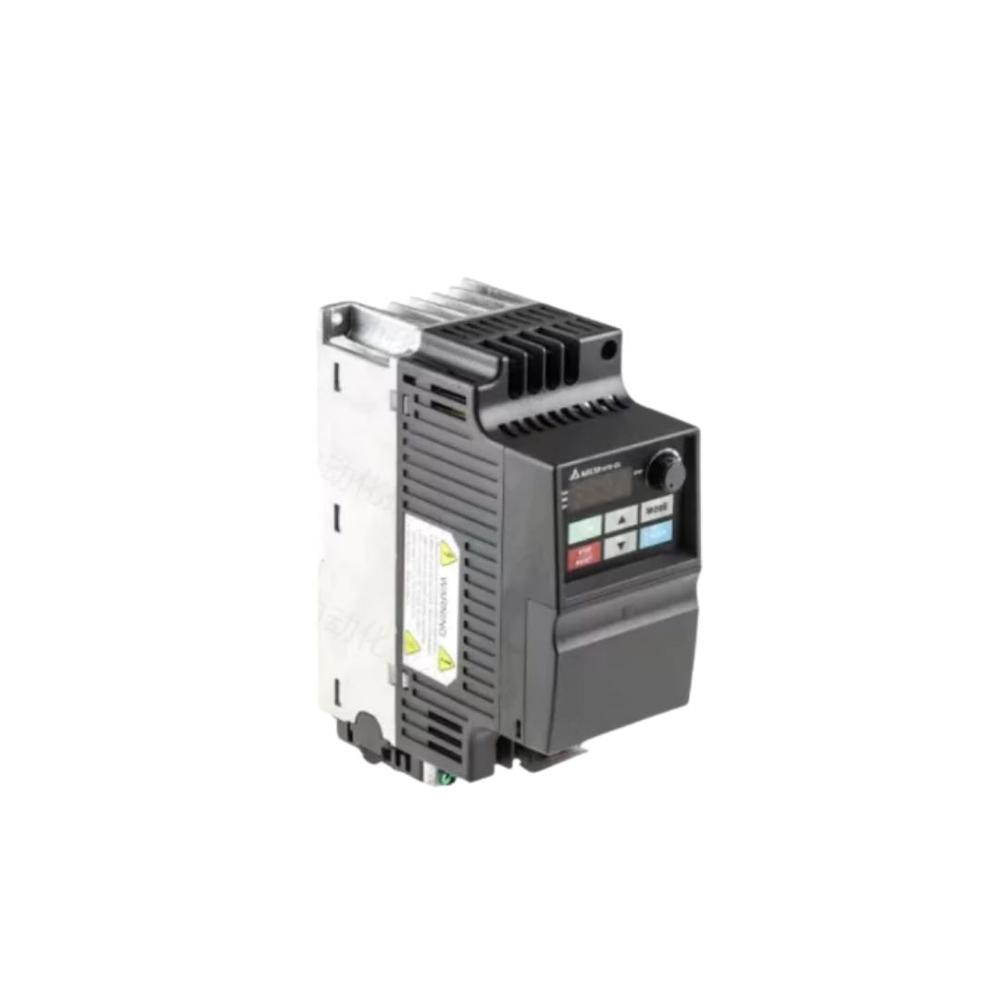

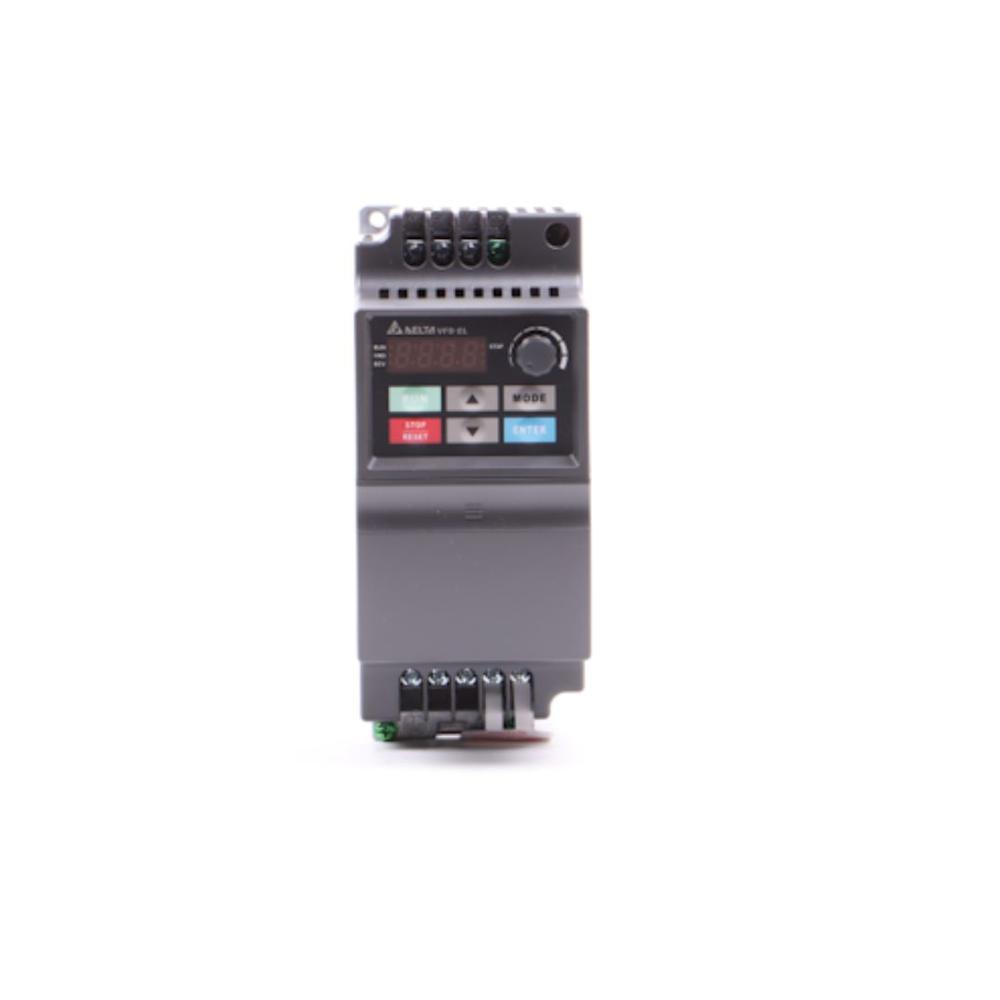

Electric Delta Vfd004 El43 A

Name: Electric Delta Vfd004 El43 A
Brand: P&S INNOVATION
Price: 8200.0 INR
Availability: InStock

Price 8200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electric Delta Vfd004 El43 A Specification

Base Material
High Grade Plastic

Operating Voltage
380-480V

Rated Operation Voltage
380-480V AC

Cabinet Material
ABS Plastic

Current Rating
4A

Cooling System
Built-in Cooling Fan

Thickness
Standard

Features
Compact Design, Overload Protection, Energy Saving, Auto Restart

Way
3 Way

Panel Type
Digital Panel

Cover Material
Reinforced Plastic

Rated Insulation Voltage
630V

Components
IGBT, Control Board, Capacitors

Rated Current
4A

Protection Class
Class I

Connectivity Type
Terminal Block

Protection Level
IP20

Control System
V/F Control, Sensorless Vector Control

Product Type
AC Drive (Variable Frequency Drive)

Material
Plastic and Metal Components

Surface Finish
Matte

Standard
IEC/EN 61800-5-1

Surface Color
Black / Grey

Rated Voltage
3 Phase 400V AC

Frequency (MHz)
0-400Hz

Maximum Output Current
3.8A

Dimension (L*W*H)
110mm 128mm 142.5mm

Application
Motor Speed Control, Conveyor Systems, Pumps, HVAC

IP Rating
IP20

Display Type
Digital LED Display

Output Phase
Three Phase

Input Voltage Range
323-528V AC

Humidity
5%~95% non-condensing

Storage Temperature
-20C to 60C

Weight
1.3 kg

Ambient Temperature
-10C to 50C (operation)

Start Control
Keypad / Remote / Terminal block

Power Output
0.4 kW (1/2 HP)

Mounting
DIN rail / Wall mount

Electric Delta Vfd004 El43 A Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

Electric Delta Vfd004 El43 A About

460V, 0.4KW / 0.5HP, Inbuilt EMC filter, Non detachable display unit.The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

Advanced Control Capabilities for Industrial Motors

With both V/F and sensorless vector control methods, the VFD004 EL43 A ensures responsive and accurate management of motor speed and torque. Its programmable protection features guard critical applications, making it perfect for demanding environments like conveyor systems and HVAC units.

Compact, Durable Design with User-Friendly Interface

Housed in a high-grade ABS plastic cabinet with reinforced plastic covers, the drive maintains a lightweight, rugged build. The intuitive digital LED panel and accessible terminal block connectivity streamline monitoring and configuration, while the matte black and grey finish blends seamlessly into control panels.

FAQ's of Electric Delta Vfd004 El43 A:

Q: How is the Electric Delta VFD004 EL43 A installed for motor control applications?

A: The VFD004 EL43 A can be installed into an electrical panel using its compact frame and terminal block connections. Ensure proper wiring according to the three-phase 380-480V input requirement and secure the unit for optimal cooling and accessibility.

Q: What types of motors and systems are suitable for this VFD model?

A: This VFD is ideal for small- to medium-sized motors in conveyor systems, pumps, HVAC equipment, and general industrial automation, supporting motors up to 0.4kW (1/2HP) at 380-480V AC.

Q: When should overload, overvoltage, and short circuit protections be programmed?

A: Programmable protections should be set during the initial commissioning phase to match the application requirements, ensuring that the drive operates safely under all expected load and voltage conditions.

Q: Where can the VFD004 EL43 A be safely mounted, considering its IP20 rating?

A: The drive should be installed indoors in a clean, dry environment, away from exposure to moisture, dust, or conductive particles, as the IP20 rating provides basic protection against solid objects but not liquids.

Q: What is the process for configuring the control method on this inverter?

A: Configuration is performed via the digital LED panel, allowing users to select between V/F control and sensorless vector control as needed, optimizing performance for the specific application.

Q: How does the built-in cooling fan benefit the drive's operation?

A: The integrated cooling fan ensures stable operation by dissipating heat, thus enhancing longevity and performance consistency, especially during continuous or heavy-duty use.

Q: What advantages does the compact design offer for manufacturers and installers?

A: Its compact dimensions (110mm x 128mm x 142.5mm) and lightweight build (1.1 kg) enable easy integration into space-constrained control panels, reducing installation effort and saving valuable cabinet space.
