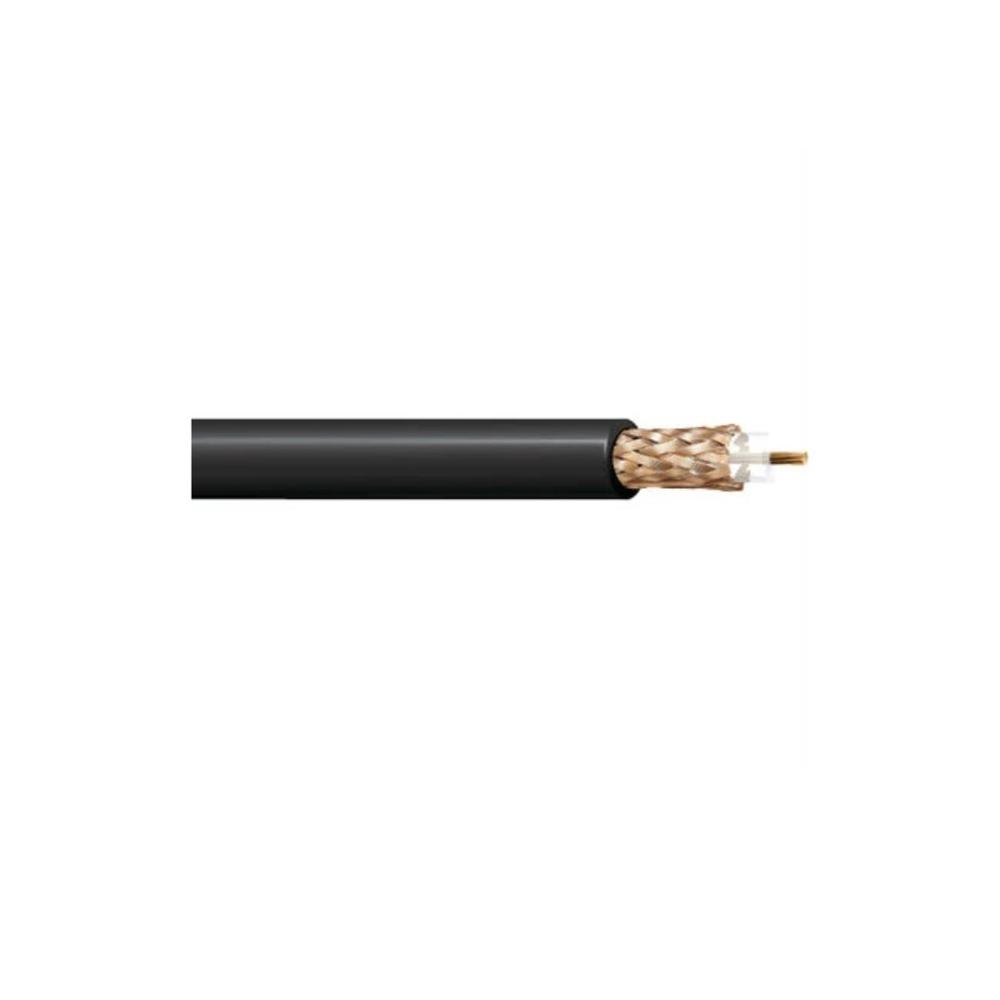

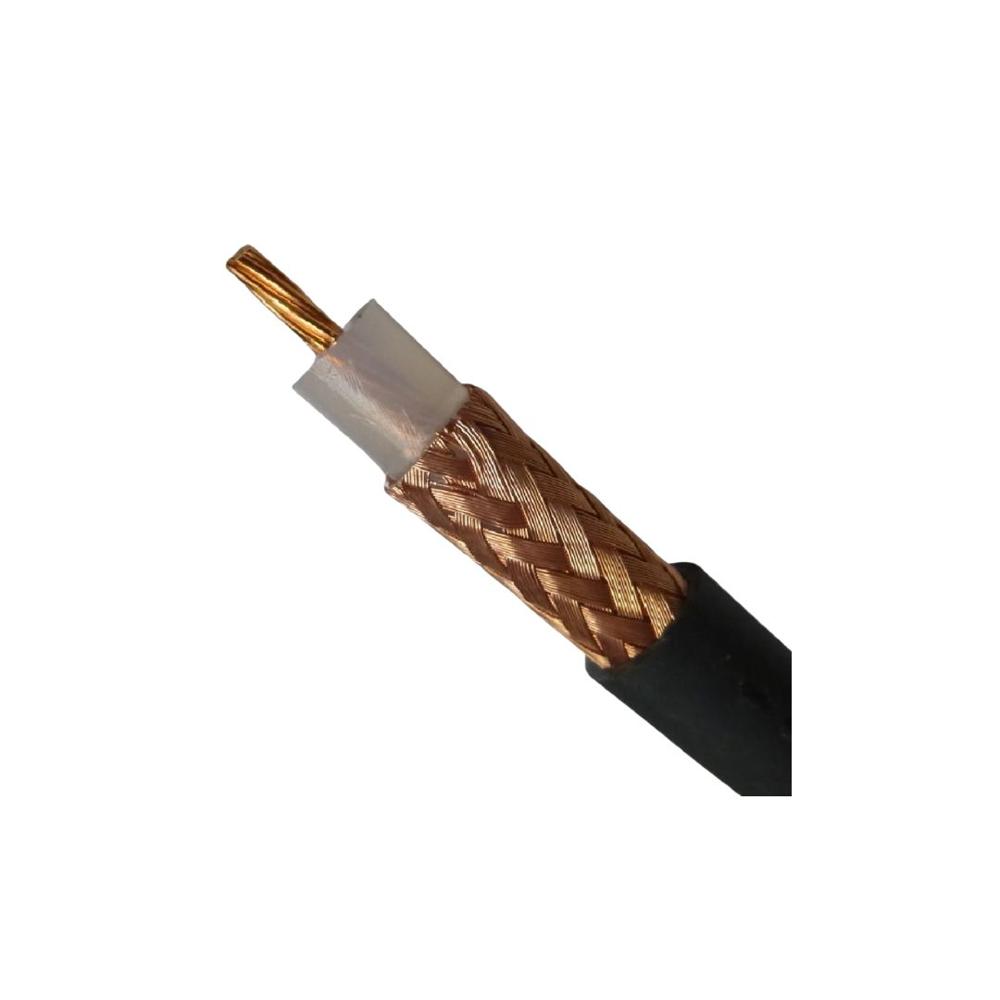

BELDEN 8267

Price 525 INR/ Meter

Get a Price/Quote

BELDEN 8267 Specification

Diameter
0.242 inch (6.15 mm) nominal

Features
High-flexibility, durable, standard general-purpose coaxial cable

Usage & Applications
Laboratory, broadcast, RF/microwave signal transmission

Operating Temperature
-20C to +80C

Insulation
Solid PE

Weight
46 lbs/mft (per 1000 ft)

Core Material
Tinned Copper

Install Type
Indoor and Outdoor

Number of Conductor
1

Rated Temperature
+80C

Core Number
Single core

Conductor Type
Stranded

Impedance
50 Ohms

Dielectiric Strength
2000 VRMS

Conductor Shape
Round

Cable Type
Coaxial RG-213/U Equivalent

Product Type
Coaxial Cable

Length
Per reel or custom cut lengths

Voltage
150 V RMS (UL AWM); 300 V Peak (CSA)

Insulation Material
Polyethylene (PE)

Application
High-frequency transmission, signal and video applications

Conductor Material
Stranded Tinned Copper

Jacket Material
Non-contaminating PVC

Storage Temperature
-20C to +80C

Shield Material
Tinned Copper Braid (95% coverage)

Jacket Color
Black

Material
Tinned Copper, PE, PVC

Color
Black

Size
0.060 (1.52mm) conductor diameter

Minimum Bend Radius
2.4" (61 mm)

Flame Rating
UL VW-1, CSA FT1

RoHS Compliance
Yes

Capacitance
31 pF/ft

Velocity of Propagation
66% nominal

Shield Coverage
95% Braid Coverage

Water Resistance
Jacket is water-resistant

Outside Diameter Tolerance
±0.005" (±0.13 mm)

Nominal Conductor DC Resistance
9.90 Ohms/1000 ft at 20°C

Standard/Approval
UL AWM Style 1354, CSA, NEC Type CL2

Oil Resistance
Good (standard PVC jacket)

Max Operating Frequency
300 MHz

BELDEN 8267 Trade Information

Minimum Order Quantity
305 Meter

Main Domestic Market
All India

About BELDEN 8267

Mil-Spec Coax, 50 Ohm, RG-213, 13 AWG (7x21) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket (Non-Contaminating), CMX, Commercial, non-QPL

Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Engineered for High Performance

BELDEN 8267 coaxial cables are crafted to provide consistent, low-loss signal transmission for a variety of demanding environments, including laboratories and broadcast studios. With 95% shield coverage and solid polyethylene insulation, this cable ensures minimal interference and high reliability in RF and video applications. It supports frequencies up to 300 MHz and withstands rigorous installation conditions due to its flexible yet tough construction.

Robust Construction for Versatile Applications

The 8267 features a stranded tinned copper conductor, non-contaminating PVC jacket, and 2.4" minimum bend radius for enhanced flexibility. Its water-resistant and oil-resistant properties enable use in both indoor and outdoor installations. The cable's adherence to UL and CSA standards, along with a VW-1 and FT1 flame rating, supports safe and compliant use across a broad range of industries in India and beyond.

Reliable and Compliant Choice

Offering RoHS compliance, precise outside diameter tolerance, and a wide temperature range of -20C to +80C, BELDEN 8267 maintains signal integrity and cable longevity in diverse conditions. Available per reel or in custom cut lengths, this coaxial cable is an ideal solution for exporters, importers, manufacturers, and suppliers seeking quality and flexibility in their projects.

FAQ's of BELDEN 8267:

Q: How should BELDEN 8267 coaxial cable be installed for optimal performance?

A: BELDEN 8267 should be installed following proper cable management practices, observing a minimum bend radius of 2.4" (61 mm) and avoiding excessive pulling force. Its flexibility facilitates routing in tight spaces, making it suitable for both indoor and outdoor installations, especially where high-frequency and signal integrity are critical.

Q: What are the main applications for BELDEN 8267 cable?

A: This cable is primarily designed for laboratory settings, broadcast studios, RF and microwave signal transmission, and general high-frequency video applications. Its robust shielding and construction help ensure reliable, low-loss transmission in environments susceptible to electromagnetic interference.

Q: When is BELDEN 8267 preferred over other coaxial cables?

A: Choose BELDEN 8267 when high signal quality, flexibility, and durability are important, particularly in environments requiring rigorous standards like UL AWM, CSA, and NEC CL2. It is ideal for situations demanding water and oil resistance, strict flame ratings, and resilience to temperature variations.

Q: Where can BELDEN 8267 be used regarding environmental conditions?

A: This cable is designed for both indoor and outdoor use. Its black, water-resistant, non-contaminating PVC jacket and solid construction suit various environments, including harsh industrial and laboratory settings with temperature ranges from -20C to +80C.

Q: What is the process for procuring BELDEN 8267 in India?

A: BELDEN 8267 is available through authorized exporters, importers, manufacturers, and suppliers across India. It can be ordered per reel or in custom-cut lengths to meet project-specific requirements, ensuring flexibility for different installation scenarios.

Q: How does the shield coverage of BELDEN 8267 benefit its performance?

A: With 95% tinned copper braid coverage, the cable offers excellent protection against electromagnetic interference, crucial for maintaining signal clarity and minimizing transmission losses, especially in high-frequency or sensitive signal installations.

Q: What advantages does BELDEN 8267 offer for signal and video transmission?

A: BELDEN 8267 provides low capacitance, high propagation velocity, and robust shielding, ensuring minimal signal loss and interference. These features support high-quality, dependable transmission, making it suitable for demanding broadcast and laboratory applications.
