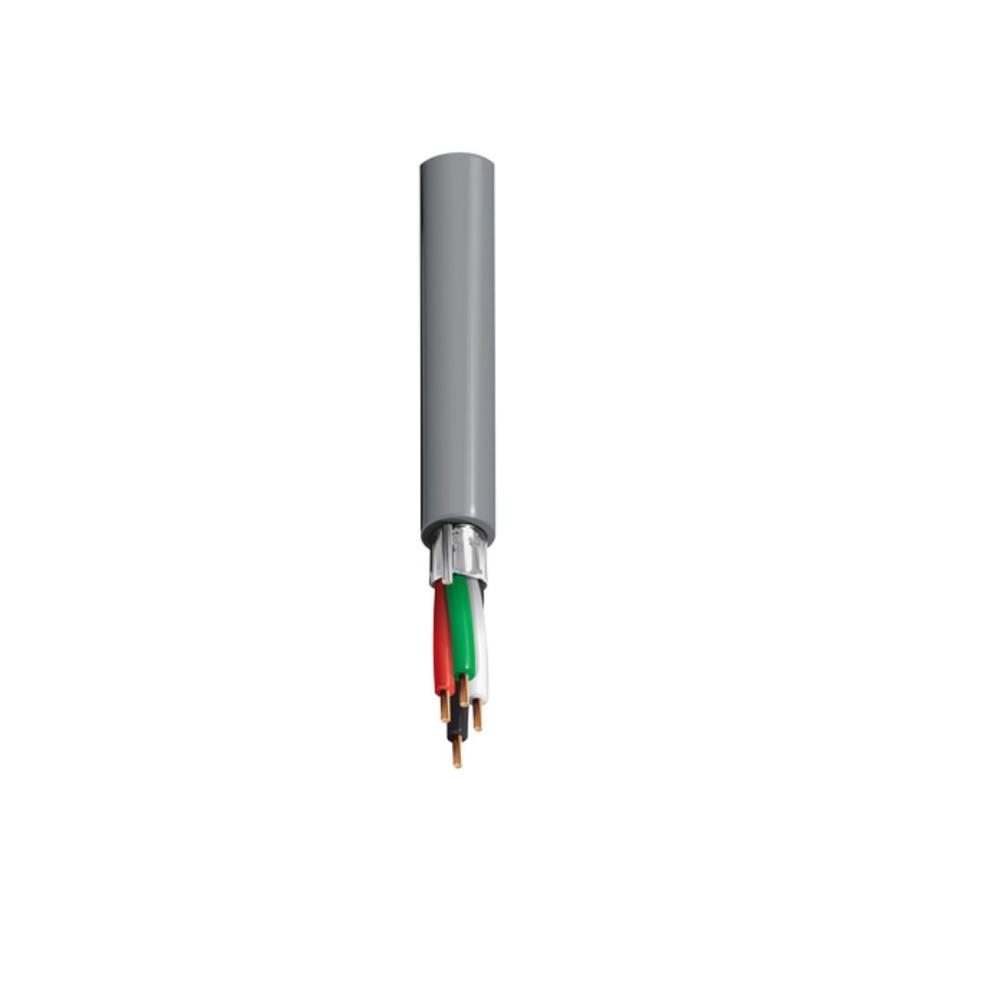

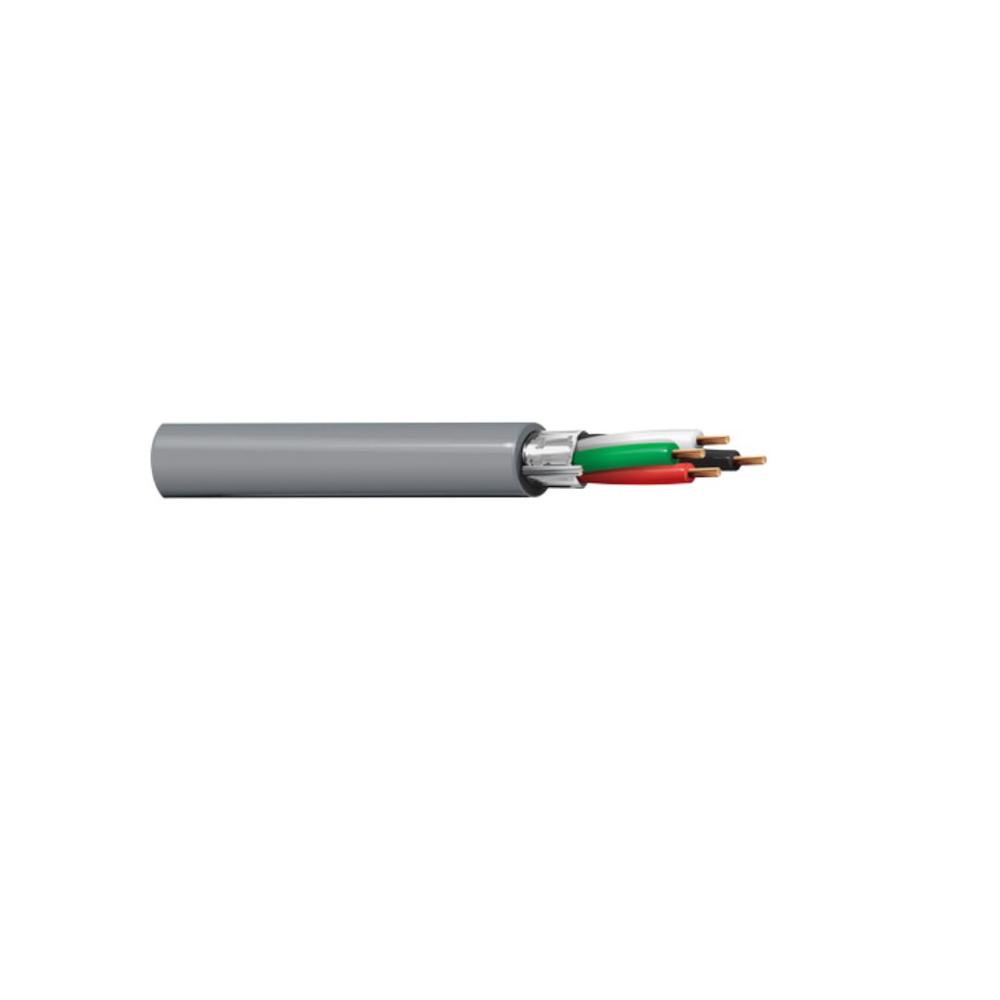

BELDEN 5302FE

Price 110 INR/ Meter

Get a Price/Quote

BELDEN 5302FE Specification

Insulation
FEP (Fluorinated Ethylene Propylene)

Conductor Type
Solid

Conductor Shape
Round

Usage & Applications
Low Voltage Power, Security, Audio, Communication in Plenum Spaces

Install Type
Indoor

Features
Plenum Rated, LSZH, Fire-resistant, High Flexibility

Rated Temperature
-20C to 75C

Armored Material
Not Armored

Diameter
Approx. 4.3 mm

Operating Temperature
-20C to 75C

Weight
About 26 lbs/1000 ft

Cable Type
Control Cable, Plenum Rated

Number of Conductor
2

Core Number
2

Core Material
Copper

Product Type
Multiconductor Control Cable

Length
305 Meters (1000 Ft) Standard

Voltage
300V

Insulation Material
FEP (Fluorinated Ethylene Propylene)

Application
For Low Voltage Controls, Security, Audio, Communication

Conductor Material
Bare Copper

Jacket Material
PVC

Storage Temperature
-20C to 75C

Shield Material
Overall Aluminum Foil Shield

Jacket Color
Gray

Dimension (L*W*H)
As per standard reel, see datasheet

Color
Gray

Material
Copper, FEP, PVC

Size
2 x 16 AWG

Packaging
Reel

Flame Test
UL 910 Plenum flame test

Nominal Conductor Diameter
1.29 mm

Shield Coverage
100% (Aluminum-Polyester Tape)

Jacket Thickness
0.41 mm (Nominal)

Max Capacitance
44 pF/ft

Minimum Bend Radius
43 mm

Ripcord
Yes, under jacket for easy stripping

BELDEN 5302FE Trade Information

Minimum Order Quantity
305 Meter

Main Domestic Market
All India

About BELDEN 5302FE

Security & Sound, #18-4c, BC, Shielded, CM

Security & Sound Cable, Riser-CMR, 4-18 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil shield and PVC jacket with ripcord

Superior Plenum Safety and LSZH Compliance

BELDEN 5302FE is meticulously engineered to meet UL 910 Plenum flame test standards, ensuring it is safe for use in plenum spaces. The low smoke zero halogen (LSZH) characteristics make it particularly suitable for environments prioritizing safety and air quality, such as offices, hospitals, and schools.

Robust Construction and Flexibility

This cable combines a solid bare copper conductor with FEP insulation and a PVC outer jacket, delivering excellent electrical properties, flexibility, and fire resistance. The 100% aluminum-polyester tape shielding protects against electromagnetic interference, supporting reliable signal transmission for critical applications.

Effortless Installation and Handling

Designed with installers in mind, the BELDEN 5302FE includes an integrated ripcord under the jacket for fast, clean stripping. The cable's high flexibility, minimum bend radius, and convenient 305-meter reel packaging streamline large-scale installations across indoor plenum-rated locations.

FAQ's of BELDEN 5302FE:

Q: How should the BELDEN 5302FE cable be installed in plenum-rated spaces?

A: The BELDEN 5302FE is approved for use in plenum spaces and should be installed according to local building codes and standards. Its high flexibility and built-in ripcord help facilitate easy routing and stripping during installation, making it ideal for HVAC plenums and areas requiring fire-resistant cabling.

Q: What applications is the BELDEN 5302FE most suitable for?

A: This cable is ideal for low voltage power, security systems, audio distribution, and communication networks, especially in environments with stringent fire safety requirements such as office buildings, hospitals, and educational institutions.

Q: When does the plenum-rated feature benefit my installation?

A: The plenum rating of BELDEN 5302FE is particularly beneficial when cabling needs to be run through air-handling spaces, as it greatly reduces smoke and toxic fumes in the event of a fire, protecting building occupants and electronics.

Q: Where can the BELDEN 5302FE be used?

A: This cable is designed for indoor deployments, primarily in plenum spaces and other locations where compliance with UL 910 flame testing and reduced smoke emissions are required. Common sites include corporate, healthcare, and commercial buildings.

Q: What is the process for stripping or terminating this cable?

A: Thanks to its integrated ripcord located beneath the jacket, the BELDEN 5302FE can be easily and cleanly stripped, speeding up the preparation for termination and ensuring safe and efficient handling.

Q: How does the overall shield coverage enhance cable performance?

A: The 100% aluminum-polyester tape shield protects signals against electromagnetic interference, ensuring stable data and audio transmissions, which is vital for security, communication, and control applications.

Q: What are the main benefits of using FEP insulation in the BELDEN 5302FE?

A: FEP insulation offers excellent resistance to temperature extremes and chemical exposure, resulting in stable electrical performance, enhanced fire resistance, and a longer service life for the cable.
