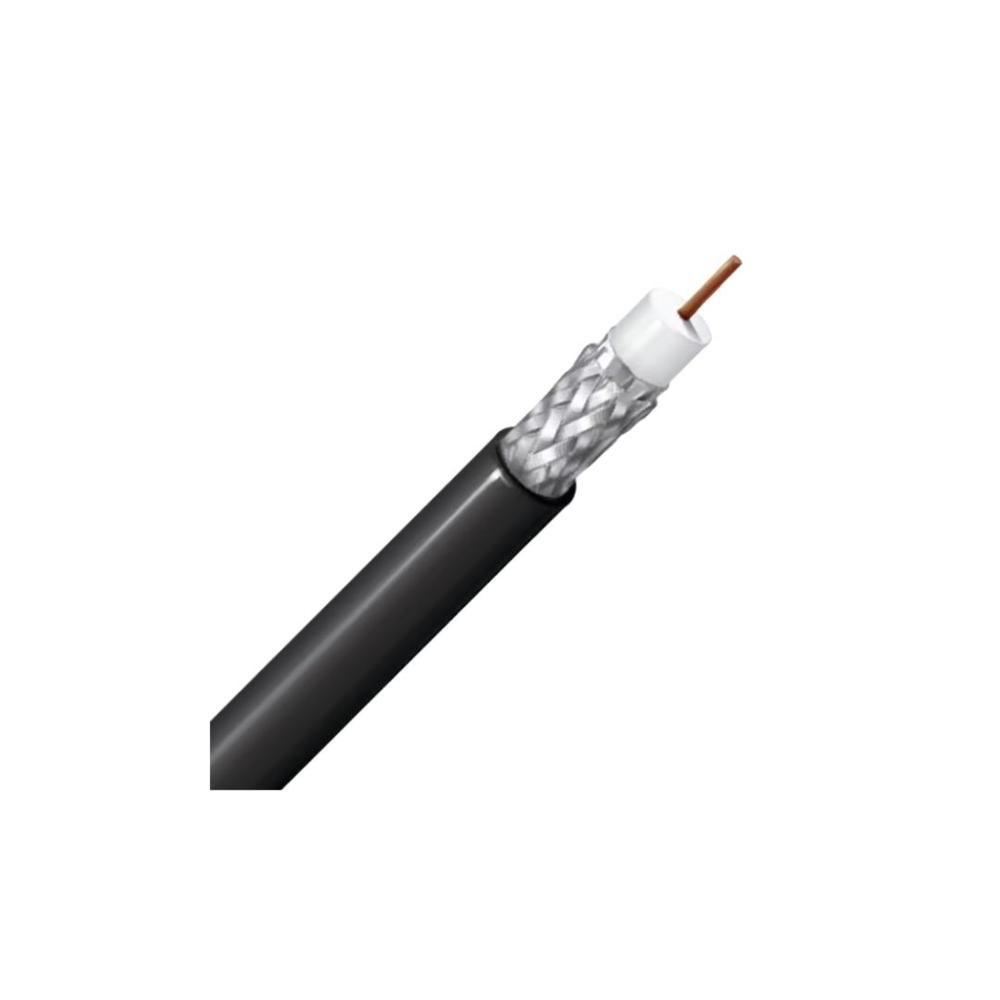

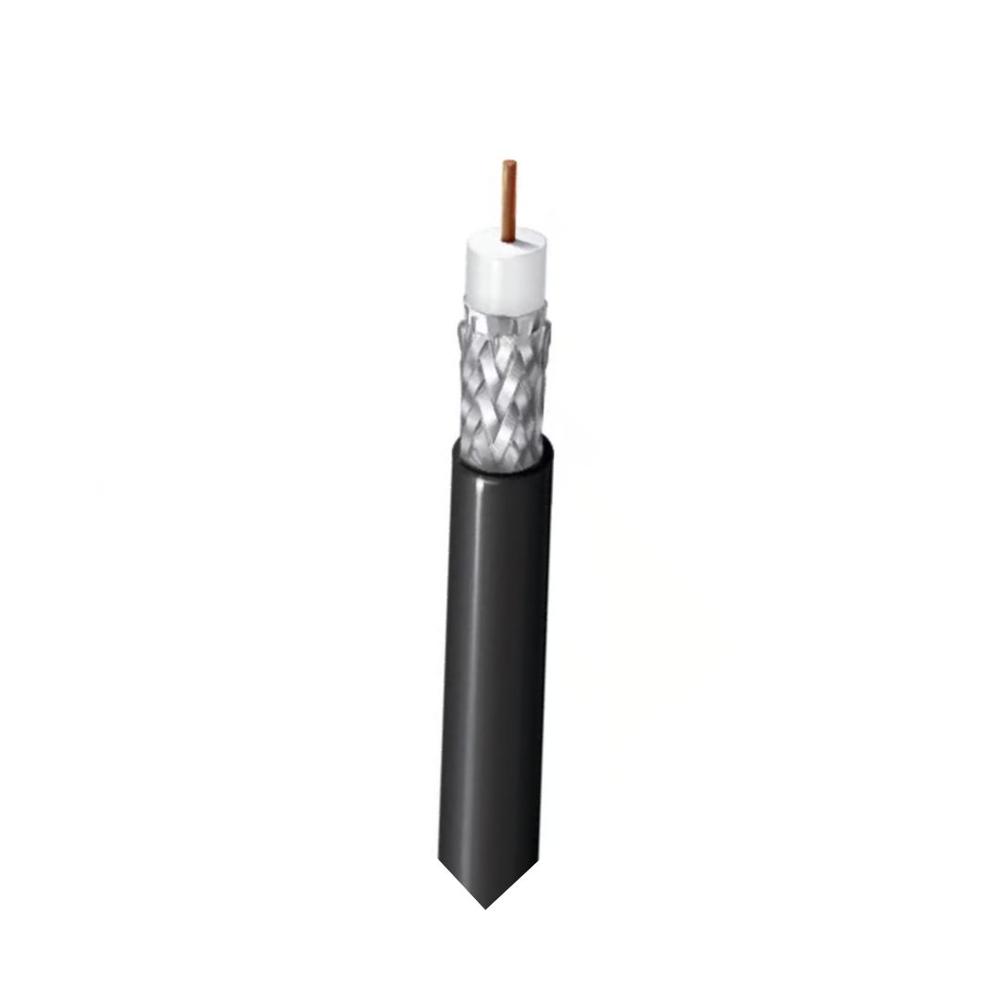

BELDEN 1694A

Price 170 INR/ Meter

Get a Price/Quote

BELDEN 1694A Specification

Dielectiric Strength
4500 V RMS

Diameter
6.15 mm (0.242 in)

Core Number
Single Core

Number of Conductor
1

Cable Type
Coaxial Cable

Core Material
Copper

Conductor Type
Solid

Rated Temperature
-20C to +60C

Tensile Strength
Min. 267 N (60 lbf)

Features
High-definition 4K UHD transmission, low signal loss, precision video cable, 18 AWG solid bare copper conductor

Install Type
Permanent and mobile installations

Insulation
Foam HDPE

Operating Temperature
-20C to +60C

Impedance
75 Ohm

Conductor Shape
Round

Weight
49 kg/km approx.

Armored Material
Not Armored

Usage & Applications
Broadcast, studio, post-production, communications, digital video

Product Type
Coaxial Video Cable

Length
Belden 1694A cables are available in standard and custom lengths

Voltage
Maximum Operating Voltage: 500 V RMS

Insulation Material
Gas-injected Foam High-Density Polyethylene (FHDPE)

Application
Broadcast video, HDTV, SMPTE 292M, SDI, CCTV, AES/EBU digital audio, RF transmissions

Conductor Material
Solid Bare Copper

Jacket Material
PVC (Polyvinyl Chloride)

Storage Temperature
-40C to +75C

Connector Color
Not Applicable (Cable Only)

Shield Material
Tinned Copper Braid with Aluminum Foil

Jacket Color
Blue

Dimension (L*W*H)
Diameter: 6.15 mm (0.242 in); Length: As specified

Color
Blue

Material
Copper, FHDPE, PVC

Size
18 AWG

Capacitance
16.2 pF/ft (53.15 pF/m)

Min. Bend Radius (Install)
62 mm (2.45 in)

RoHS Compliant
Yes

Maximum Pulling Tension
267 N (60 lbf)

UL Listing
UL Listed Type CL2

Shield Coverage
95% Aluminum Foil + 95% Tinned Copper Braid

Frequency Range
DC - 3 GHz (up to 4.5 GHz for some applications)

Attenuation at 1 GHz
5.2 dB/100m

Nominal Velocity of Propagation
82%

BELDEN 1694A Trade Information

Minimum Order Quantity
100 Meter

Main Domestic Market
All India

About BELDEN 1694A

BELDEN 1694A coaxial cable delivers remarkable performance and optimum signal integrity for broadcast and high-definition 4K UHD transmission. Featuring a potent shield coverage of 95% aluminum foil plus 95% tinned copper braid, it ensures low attenuation and excellent protection. Personalise your requirements with standard or custom lengths-last chance offers available. Built with an 18 AWG solid bare copper conductor and innovative gas-injected FHDPE insulation, this cable is UL Listed, RoHS compliant, and engineered for utmost reliability in professional settings. Perfect for high-end studios, post-production, CCTV, HD video, and RF applications.

BELDEN 1694A: Versatile Application & Usage

BELDEN 1694A is ideal for permanent and mobile installations in broadcast studios, post-production facilities, and communication centers. Its robust build provides exceptional results on various surfaces, including racks, panels, and cable runs. Suitable for HDTV, SMPTE 292M, SDI, CCTV, AES/EBU digital audio, and RF transmissions, this cable caters to demanding environments where signal quality and reliability are essential.

BELDEN 1694A: Payment Terms & Export Details

For BELDEN 1694A, flexible payment terms are available, tailored for importers and exporters in India and beyond. Packaging details include secure spools for optimum transport services, ensuring that your cable arrives safely. The asking price and proposal amount depend on order specifications. BELDEN 1694A is a main export product to markets in North America, Europe, and Asia, delivered via reliable shipping partners for consistent delivery assurance.

FAQ's of BELDEN 1694A:

Q: How does the BELDEN 1694A ensure low signal loss during high-frequency transmission?

A: The BELDEN 1694A features potent shield coverage with 95% aluminum foil and 95% tinned copper braid, combined with a solid bare copper conductor and foam HDPE insulation. This remarkable combination significantly minimizes signal attenuation, delivering optimal video quality for high-frequency transmissions up to 4.5 GHz.

Q: What applications is BELDEN 1694A most suitable for?

A: BELDEN 1694A is designed for professional broadcast environments, HDTV, SMPTE 292M, SDI, CCTV, AES/EBU digital audio, and RF transmissions. Its robust construction makes it ideal for both permanent and mobile studio installations, post-production setups, and high-definition signal transport.

Q: When should I opt for custom length BELDEN 1694A cables?

A: Custom lengths are beneficial when your installation requires precise cable runs to minimize waste and ensure neat, efficient connections. This personalized option supports optimized studio layouts and specific broadcast requirements, available for both small and large-scale projects.

Q: Where is BELDEN 1694A exported from and who are the key suppliers?

A: BELDEN 1694A is frequently exported from India, serving as a prime offering from leading exporters, importers, manufacturers, and suppliers. Its reliability has established the cable in main export markets across North America, Europe, and Asia.

Q: What benefits does the BELDEN 1694A PVC jacket provide?

A: The flexible, durable blue PVC jacket safeguards the cable against mechanical stress, chemical exposure, and environmental wear, granting longevity and flexibility for intricate installations-whether stationary or in dynamic production environments.
