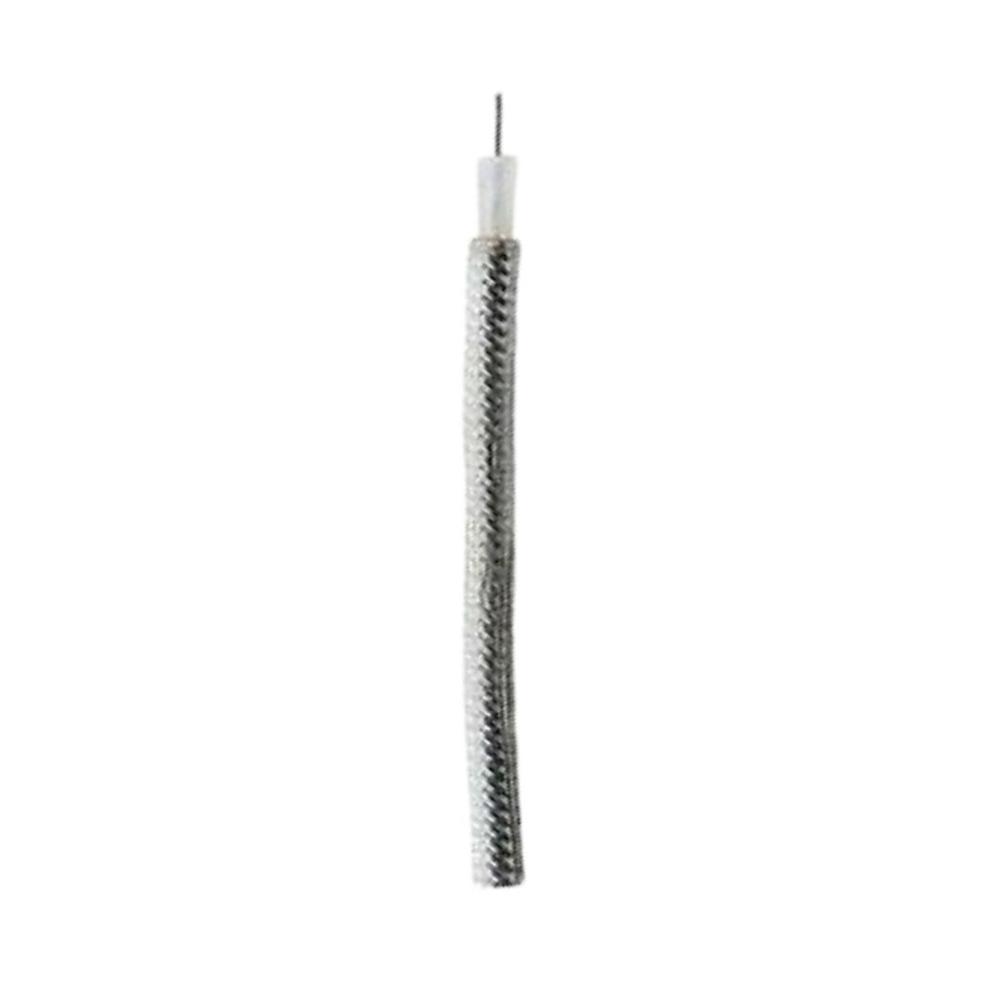

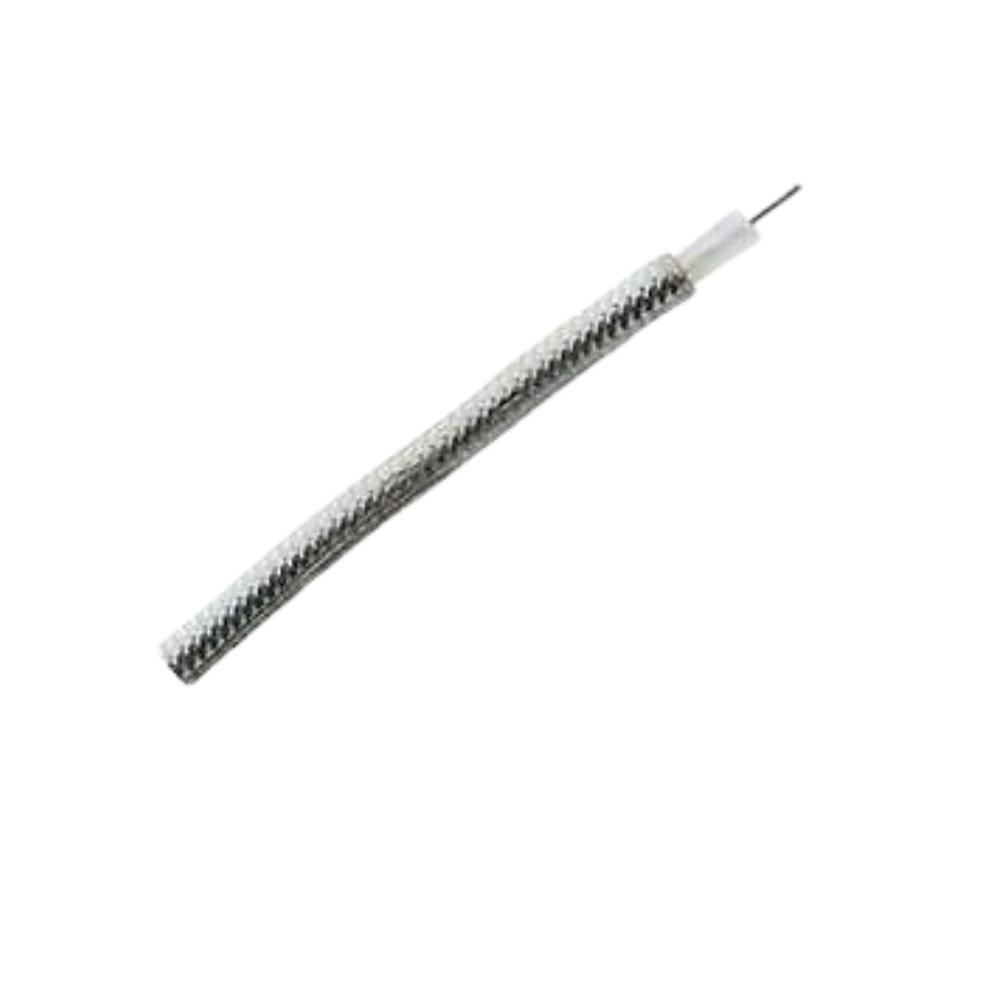

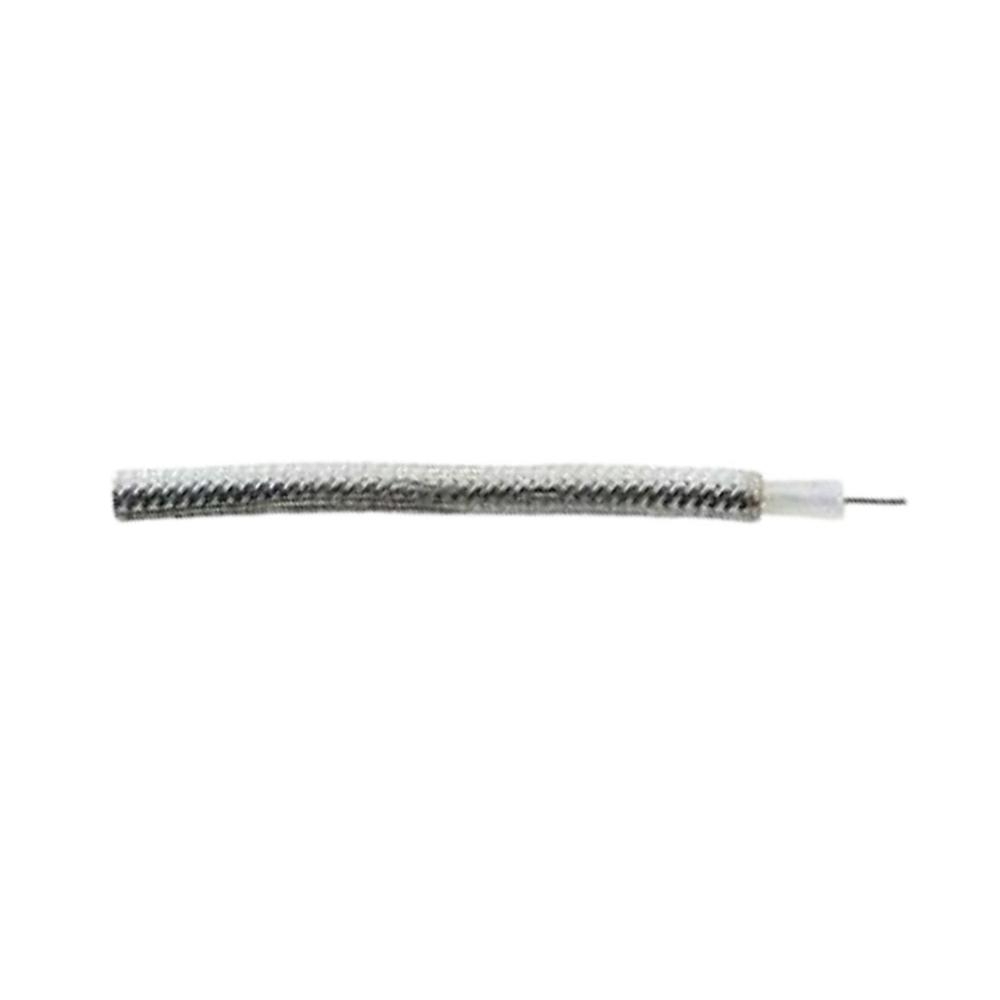

BELDEN 1671A

Price 315 INR/ Meter

Get a Price/Quote

BELDEN 1671A Specification

Weight
Approx. 34 lbs/1000 ft

Usage & Applications
Microphone & Line Level Presentations, Recording Studios, Broadcast, Sound Systems

Conductor Shape
Round

Features
Low capacitance, high performance, ideal for precision audio installations and studio wiring

Cable Type
Audio Twisted Pair, Shielded

Core Number
2

Number of Conductor
2

Rated Temperature
60C

Core Material
Tinned Copper

Operating Temperature
-20C to +60C

Diameter
5.3 mm (0.209 in) nominal

Install Type
Permanent or Flexible Installation

Insulation
Foam Polyethylene

Conductor Type
Stranded

Product Type
Audio Cable

Length
305 meters (1000 ft) standard

Voltage
300 V

Insulation Material
Foam Polyethylene

Application
Audio, Line Level, Preamp, Professional Audio Equipment

Conductor Material
Tinned Copper

Jacket Material
PVC

Storage Temperature
-20C to +75C

Shield Material
Tinned Copper, Beldfoil (Aluminum/Polyester) +

Jacket Color
Black

Material
Copper, PVC, Polyethylene

Color
Black

Size
22 AWG

Capacitance
49 pF/m

RoHS Compliant
Yes

Shield Coverage
100% Beldfoil + 85% Tinned Copper Braid

Flame Test Compliance
UL 1581 VW-1, CSA FT1

Inner Insulation Color
Red, Black

Drain Wire
Yes, 22 AWG stranded tinned copper

Nominal Conductor DCR
16.4 Ohm/km

Jacket Nominal Thickness
1.14 mm

BELDEN 1671A Trade Information

Minimum Order Quantity
305 Meter

Main Domestic Market
All India

About BELDEN 1671A

Conformable Coax, 50 Ohm RG-405, 24 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed.

Conformable Coax, 50 Ohm, RG-405, 24 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield, Unjacketed

Engineered for Precision Audio

Built specifically for audio applications, the BELDEN 1671A delivers clean, undistorted signals, making it the cable of choice for recording studios, broadcast environments, and high-end sound systems. Its low capacitance minimizes signal loss and degradation, preserving audio quality for critical listening and production.

Robust Shielding for Minimal Interference

This cable features dual shielding: a 100% coverage Beldfoil (aluminum/polyester) plus an 85% tinned copper braid, effectively blocking electromagnetic and radio frequency interference. The superior shielding means your audio remains pure even in challenging electromagnetic environments.

Flexible, Safe & Compliant

Engineered for flexibility and durability, the BELDEN 1671A's PVC jacket and stranded tinned copper conductors enable both permanent and dynamic installations. Compliance with UL 1581 VW-1 and CSA FT1 flame standards assures safety, while RoHS certification attests to environmental responsibility.

FAQ's of BELDEN 1671A:

Q: How is the BELDEN 1671A cable typically installed in professional audio setups?

A: The BELDEN 1671A is suitable for both permanent and flexible installations. Installers use it for internal studio wiring, microphone and line-level connections, and broadcast systems, running the cable through conduits or cable trays to maintain signal integrity and minimize exposure to interference.

Q: What benefits does the dual shielding provide in this audio cable?

A: The combination of 100% Beldfoil and 85% tinned copper braid shields provides exceptional rejection of electromagnetic and radio frequency interference. This helps ensure clear, noise-free audio transmission, which is crucial in studio and professional sound applications.

Q: When should you choose BELDEN 1671A for your installation?

A: BELDEN 1671A is recommended when low capacitance and high shielding are required, such as in precision audio installations, recording studios, and broadcast facilities. It's especially useful where long cable runs could otherwise introduce noise or loss to sensitive audio signals.

Q: Where can BELDEN 1671A cables be used?

A: BELDEN 1671A is designed for indoor use in environments like recording studios, professional audio installations, conference venues, and broadcast facilities. Its flame-retardant properties make it suitable for locations where safety standards are required.

Q: What process ensures compliance with safety and environmental standards for this cable?

A: BELDEN 1671A undergoes rigorous flame testing (UL 1581 VW-1 and CSA FT1) to meet fire safety regulations and is manufactured according to RoHS guidelines, ensuring that the cable does not contain hazardous substances.

Q: How does the cable's low capacitance improve audio performance?

A: With a capacitance of 49 pF/m, BELDEN 1671A minimizes signal loss and preserves high-frequency detail, making it ideal for accurate audio reproduction required in professional sound setups.

Q: What are the main usage scenarios for BELDEN 1671A?

A: This cable is primarily used for line-level, preamp, and microphone connections in applications such as recording studios, sound systems, and broadcast installations, where dependable performance and signal clarity are essential.
