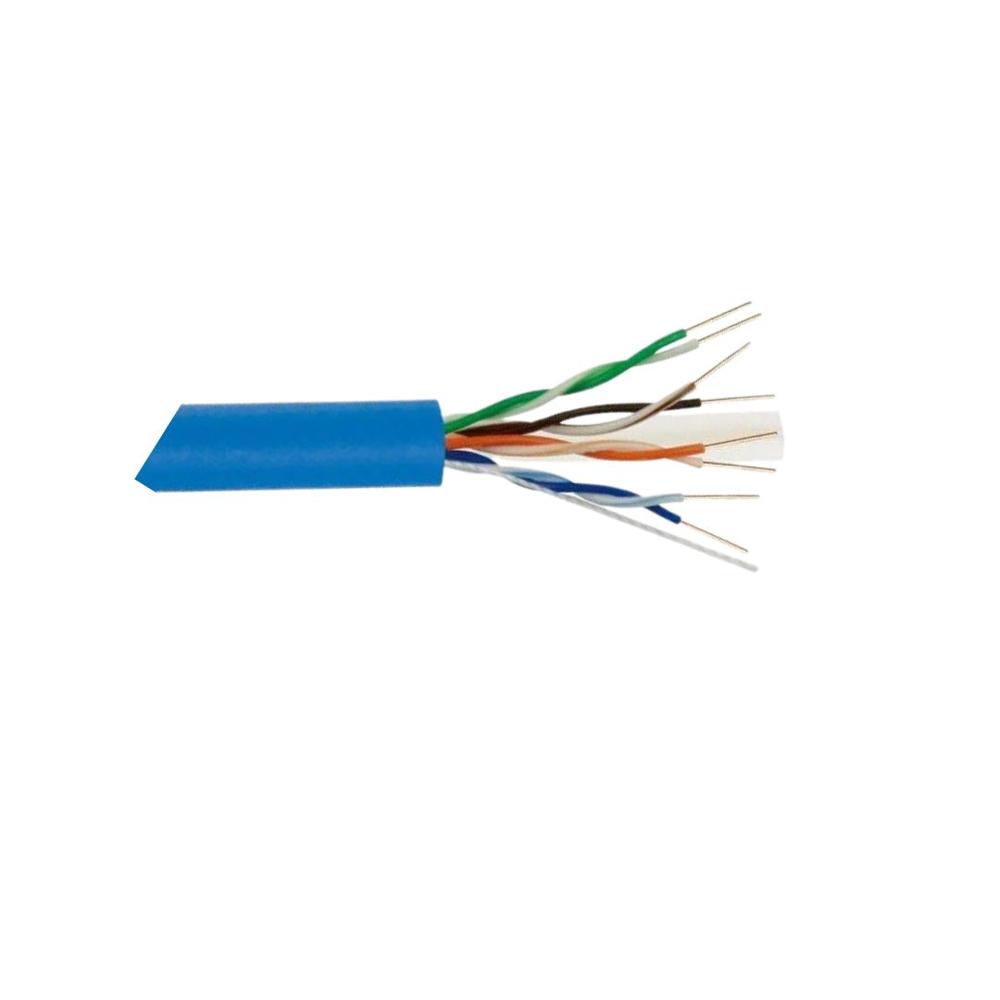

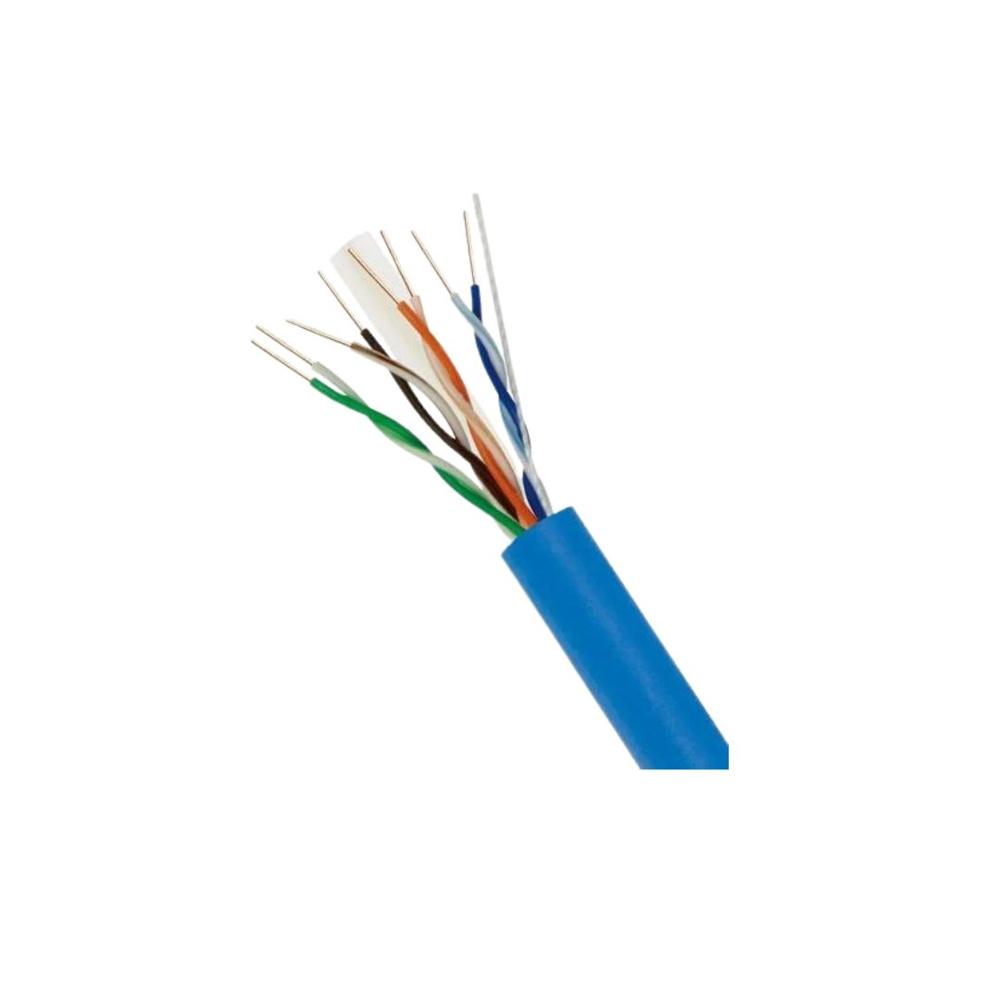

BELDEN 10GA24 CAT 6A CABLE

Name: BELDEN 10GA24 CAT 6A CABLE
Brand: P&S INNOVATION
Price: 52.00 INR
Availability: InStock

Price 52.00 INR/ Meter

Get a Price/Quote

BELDEN 10GA24 CAT 6A CABLE Specification

Operating Temperature
-20°C to +60°C

Features
High performance, supports 10 Gigabit Ethernet, enhanced crosstalk and noise immunity, RoHS compliant, flame retardant, high density, low attenuation, compliant with ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards

Rated Temperature
-20°C to +60°C

Usage & Applications
Data transmission, 10GBase-T, high bandwidth applications

Install Type
Indoor, structured cabling

Conductor Shape
Solid

Conductor Type
Solid

Tensile Strength
Minimum 100N

Dielectiric Strength
2000V AC/1min

Cable Type
Category 6A (CAT 6A) U/FTP Ethernet Cable

Impedance
100 Ohms ± 15

Core Material
Copper

Core Number
4 Pairs (8 wires)

Insulation
HDPE

Diameter
Approx. 8.2 mm

Number of Conductor
8 (4 twisted pairs)

Weight
Approx. 35 kg/km

Product Type
CAT 6A U/FTP Cable

Length
305 meters (1000 ft) per spool

Voltage
300V

Insulation Material
Other

Application
Other

Conductor Material
Bare Copper

Jacket Material
Low Smoke Zero Halogen (LSZH)

Storage Temperature
-40°C to +75°C

Connector Color
N/A (Bulk Cable)

Shield Material
Aluminum Polyester Foil

Jacket Color
Blue

Dimension (L*W*H)
Reel size varies, cable is round with approx. diameter of 8.2 mm

Material
Copper/LSZH

Color
Blue

Size
23 AWG

Flame Test Rating
IEC 60332-1, IEC 60754-2, IEC 61034

Propagation Delay Skew
<45 ns/100m

Maximum Pulling Tension
110 N (25 lbf)

Attenuation at 500 MHz
Max. 39.0 dB/100 m

Bandwidth
Up to 500 MHz

RoHS Compliance
Yes

Packaging
Reel or box

Mutual Capacitance
5.6 nF/100m max

Reference Standard
ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173-1

BELDEN 10GA24 CAT 6A CABLE Trade Information

Minimum Order Quantity
305 Meter

Main Domestic Market
All India

About BELDEN 10GA24 CAT 6A CABLE

23 AWG solid bare copper conductors, non-plenum, Polyethylene insulation, twisted pairs, central spline, overall cabling, special Barrier tape, LSZH jacket

Cat 6A Cable 625 Mhz.

Superior Performance and Bandwidth

BELDEN 10GA24 CAT 6A cable is engineered for 10 Gigabit Ethernet and high-bandwidth applications, supporting frequencies up to 500 MHz. Its solid bare copper conductors and aluminum polyester foil shielding provide high-speed, reliable data transmission while minimizing crosstalk and electromagnetic interference, making it ideal for backbone, data center, and structured cabling environments.

Flame Retardant and Safety Certified

With a jacket crafted from Low Smoke Zero Halogen (LSZH) material, this cable meets IEC 60332-1, IEC 60754-2, and IEC 61034 flame test ratings. Its advanced safety design provides low toxicity emission and higher flame resistance, making it suitable for indoor use where fire safety standards are critical, such as commercial buildings and densely populated spaces.

Compliance and Versatility for Modern Networks

This CAT 6A cable adheres to ANSI/TIA-568.2-D, ISO/IEC 11801, and EN 50173-1, ensuring seamless integration into global structured cabling systems. With a robust design, maximum pulling tension of 110 N, and a convenient packaging format (reel or box), it fits various installer needs for enterprise, campus, and high-speed broadband network applications.

FAQ's of BELDEN 10GA24 CAT 6A CABLE:

Q: How does the BELDEN 10GA24 CAT 6A cable support 10 Gigabit Ethernet and high-bandwidth applications?

A: This cable is specifically designed for high-speed data transmission, supporting up to 500 MHz bandwidth and 10 Gigabit Ethernet (10GBase-T). Its solid bare copper conductors, enhanced shielding, and compliance with TIA and ISO standards ensure reliable, high-performance connectivity for demanding network infrastructures.

Q: What fire safety standards does the BELDEN 10GA24 CAT 6A cable meet?

A: It features a Low Smoke Zero Halogen (LSZH) jacket and fulfills IEC 60332-1, IEC 60754-2, and IEC 61034 flame test ratings, making it suitable for indoor environments where reduced smoke and toxic gas emissions are essential for occupant safety.

Q: When should this cable be used over other Ethernet cables?

A: Use BELDEN 10GA24 CAT 6A cable for installations requiring enhanced noise immunity, extended bandwidth, and support for 10G networking, such as data centers, backbones, high-speed broadband, or areas with dense cabling. Its advanced specifications ensure performance for both current and future network demands.

Q: Where can the BELDEN 10GA24 CAT 6A cable be installed?

A: This cable is designed for indoor installations in LAN environments, data centers, building distribution systems, and structured cabling setups where high-capacity, reliable transmission is needed. Its LSZH jacket is ideal for use in public or commercial buildings adhering to strict fire safety codes.

Q: What is the typical installation process for this cable?

A: The cable can be installed using standard structured cabling procedures. It comes in 305-meter reels or boxes and supports a maximum pulling tension of 110 N. During installation, the installer should maintain bend radius and tension guidelines to ensure optimal performance and integrity of the shielding.

Q: How does using this cable benefit my network infrastructure?

A: Deploying BELDEN 10GA24 CAT 6A cable boosts your network's capability to handle high-speed, high-density data with low attenuation and enhanced crosstalk immunity. Its compliance with international standards ensures reliability, future scalability, and adherence to the latest safety and performance regulations.
