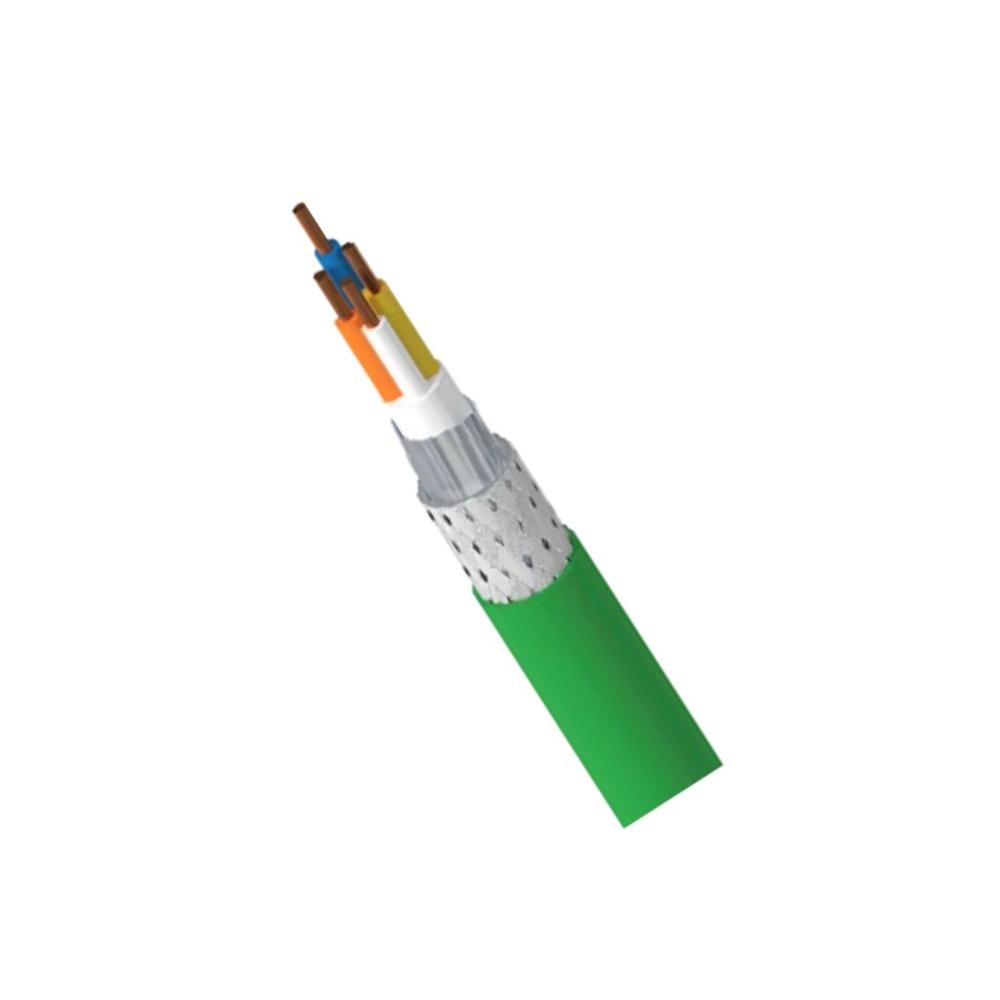

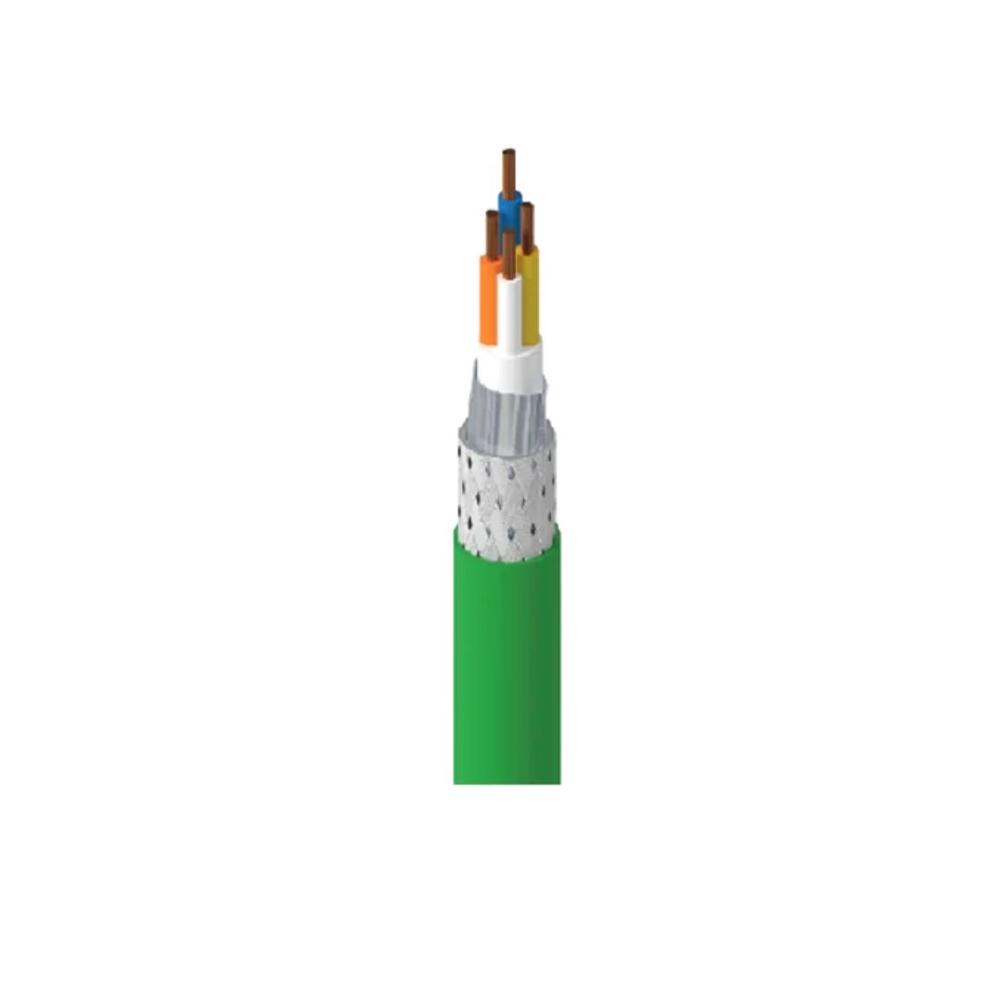

Belden 70006E Profinet Cable

Name: Belden 70006E Profinet Cable
Brand: P&S INNOVATION
Price: 110.0 INR
Availability: InStock

Price 110.0 INR/ Meter

Get a Price/Quote

Belden 70006E Profinet Cable Specification

Install Type
Fixed Installation

Core Material
Tinned Copper

Number of Conductor
4 (2 pairs)

Rated Temperature
-40C to +80C

Features
PROFINET Type A, UV-resistant, Oil-resistant, High Flexibility, Flame-retardant, LSZH (Low Smoke Zero Halogen)

Conductor Type
Stranded

Insulation
Foam PE

Dielectiric Strength
1200 V AC / 1 min

Tensile Strength
Approx. 30 N/mm (cable); mechanical data as per IEC standards

Armored Material
Not Armored

Weight
Approx. 45 kg/km

Diameter
6.4 mm (nominal)

Locking Type
Depends on connector (standard cable no locking)

Impedance
100 Ohm 15% (at 1 100 MHz)

Cable Type
PROFINET Type A (Fixed Installation)

Core Number
2 Pairs (4 cores)

Operating Temperature
-40C to +80C

Usage & Applications
Industrial Automation, Robotics, Control Cabinets, Factory Networking

Conductor Shape
Round

Product Type
Industrial PROFINET Communication Cable

Length
100 m (Standard), Custom lengths available

Voltage
300 V

Insulation Material
Other

Application
Other

Conductor Material
Stranded Tinned Copper

Jacket Material
Polyurethane (PUR)

Storage Temperature
-50C to +80C

Connector Color
Green (for PROFINET compliance)

Shield Material
Tinned Copper Braid with Aluminum-Polyester Foil

Jacket Color
Green

Dimension (L*W*H)
Depends on configuration; standard drum sizes applied

Material
Tinned Copper, Polyethylene, Polyurethane

Color
Green

Size
22 AWG (0.34 mm per conductor)

Flame Test
IEC 60332-1-2, VW-1

Max Conductor Resistance
<100 Ohm/km (at 20C)

Bending Radius (fixed/flexible)
6x cable (fixed)/8x cable (flexible)

Test Voltage
2000 V AC (Conductor/Shield)

Minimum Installation Temperature
-30C

Approvals/Certifications
UL listed, cULus, CE, RoHS compliant

Nominal Capacitance
45 nF/km (1 kHz)

Sheath Color Code
RAL 6018

Transmission Rate
Up to 100 Mbps (Fast Ethernet)

Mutual Capacitance
Less than 56 nF/km (at 800 Hz)

Pair Identification
Color-coded pairs with number coding

Oil Resistance Standard
IEC 60811-404

Belden 70006E Profinet Cable Trade Information

Minimum Order Quantity
118 Meter

Main Domestic Market
All India

About Belden 70006E Profinet Cable

Purchase the latest Belden 70006E Profinet Cable for optimum performance in industrial automation and factory networking. This crackerjack cable is a new release, engineered with resplendent features such as high flexibility, LSZH insulation, UV and oil resistance, and robust flame-retardant properties. With approvals including UL listed, cULus, CE, and RoHS compliance, this cable ensures dependable results in demanding environments. Its superior constructionstranded tinned copper, FPE insulation, and polyurethane jacketdelivers extended durability, while the green sheath meets PROFINET standards. Available in 100 m lengths or custom options. Ideal for exporters, importers, manufacturers, and suppliers across India.

Advantages and Features for Plant Automation

The Belden 70006E Profinet Cable boasts resplendent advantages for industrial plants, offering dependable oil resistance, flame-retardant LSZH insulation, and high flexibility for easy installation. Its crackerjack transmission rate supports up to 100 Mbps, making it ideal for real-time automation and robotic applications. Color-coded pairs and robust tinned copper shielding provide optimum reliability and minimized signal interference, empowering seamless plant automation, factory networking, and control cabinets. Its green polyurethane jacket ensures protection and easy identification in complex plant layouts.

Payment Terms, Sample Availability, and Shipping Details

Experience the convenience of flexible payment terms when you purchase the Belden 70006E Profinet Cable. Quick dispatch is available to ensure your cables are shipped promptly for factory installations. Sample cables are readily available to support your decision-making process before bulk purchase or exchange. With widespread supply across the main domestic markets in India, you benefit from rapid access and tailored service for all your automation and industrial networking needs.

FAQs of Belden 70006E Profinet Cable:

Q: How does the Belden 70006E Profinet Cable benefit industrial automation networks?

A: The cable ensures high-speed data transmission up to 100 Mbps, robust oil and UV resistance, and flame-retardant LSZH properties, making it ideal for continuous, reliable operations in challenging industrial environments.

Q: What certifications and approvals does the cable meet?

A: Belden 70006E is UL listed, cULus, CE, and RoHS compliant, featuring flame test ratings IEC 60332-1-2 and VW-1, and meets oil resistance standard IEC 60811-404.

Q: When is sample availability provided for this cable?

A: Sample availability is offered upon request before placing a larger order, ensuring you can examine the quality and suitability for your specific application.

Q: Where can this cable be most effectively used?

A: This cable is perfect for machine and plant automation, robotics, control cabinets, and factory networking, supporting fixed installations with its flexible, durable construction.

Q: How are shipments and dispatches handled for orders in India?

A: Orders are eligible for quick dispatch and efficient shipping across Indias main domestic market, ensuring timely delivery and customer satisfaction.

Q: What process is involved in customizing cable length for large projects?

A: Custom lengths can be requested at the time of purchase, tailored to specific project needs. The supplier collaborates with you to fulfill unique installation requirements.
